Changeover switch w. OFF; 4-pole; 1-0-2; single hole mounting
Product information "Changeover switch w. OFF; 4-pole; 1-0-2; single hole mounting"

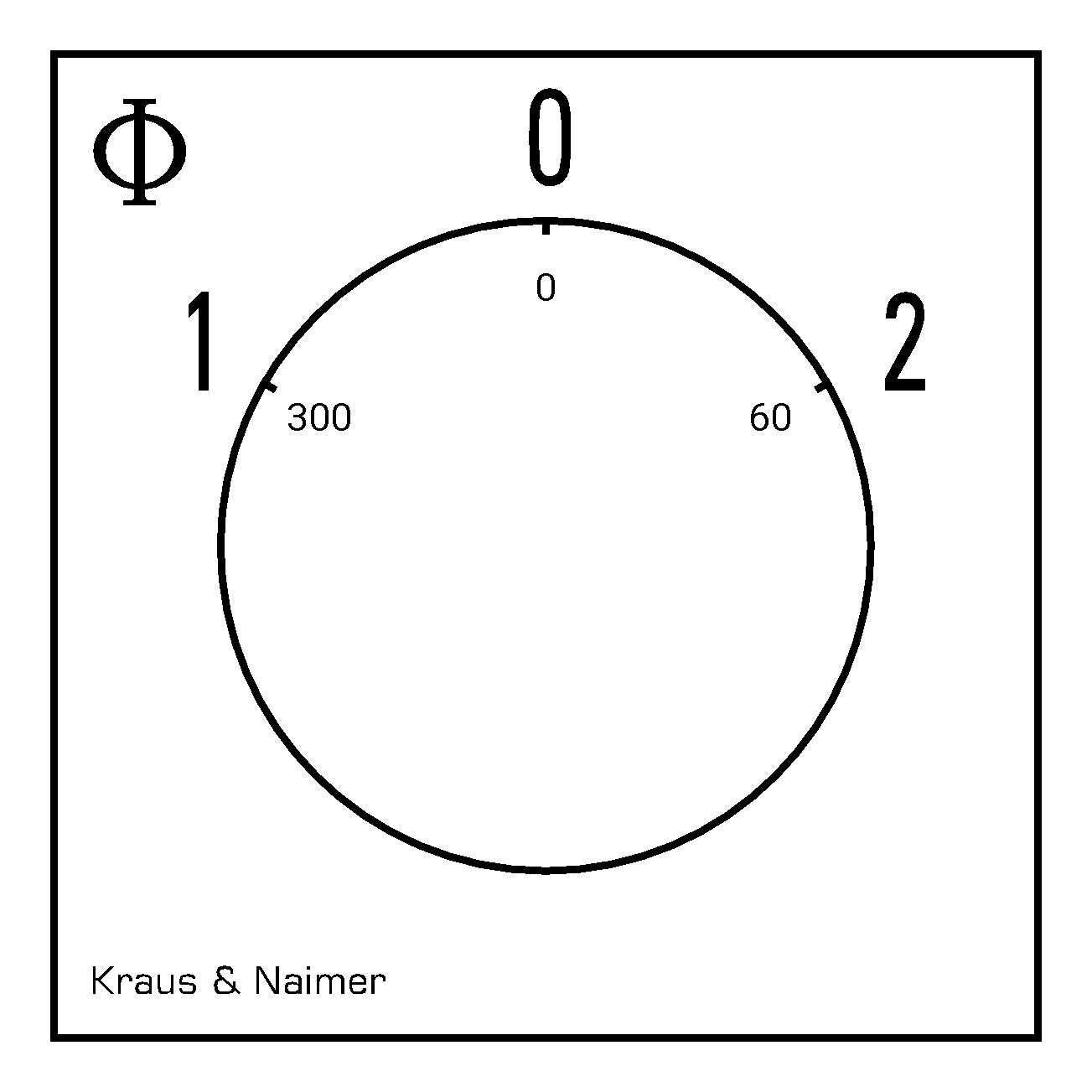

Changeover switch with OFF position; 4-pole; 60°; 1-0-2; single hole mounting with square front plate, IP66/67/69k; 20 A; 5,5 kW (AC-3, 380 - 440 V); 7,5 kW (AC-23A, 380 - 440 V)
| Switch type: | CH10 |
|---|---|
| Rated continuous current lu/lth: | 20 A |
| AC-3, 3-phase, 3-pole, 380 - 440V: | 5,5 kW |
| AC-23A, 3-phase, 3-pole, 380 - 440V: | 7,5 kW |
| Switching programme: | A213 |
| Name: | CH10.A213.FT2 |
| Type of contact development: | Changeover switch with OFF position |
| Installation described: | single hole mounting with square front plate, IP66/67/69k |
| No. of poles: | 4 |
| Mounting unit: | FT2 |
| Type of installation: | Panel mounting |
| Detailed installation type: | single hole mounting |
| Switch disconnector IEC60947-3: | N |
| Faceplate color: | brushed aluminum |
| Handle Color: | black |
