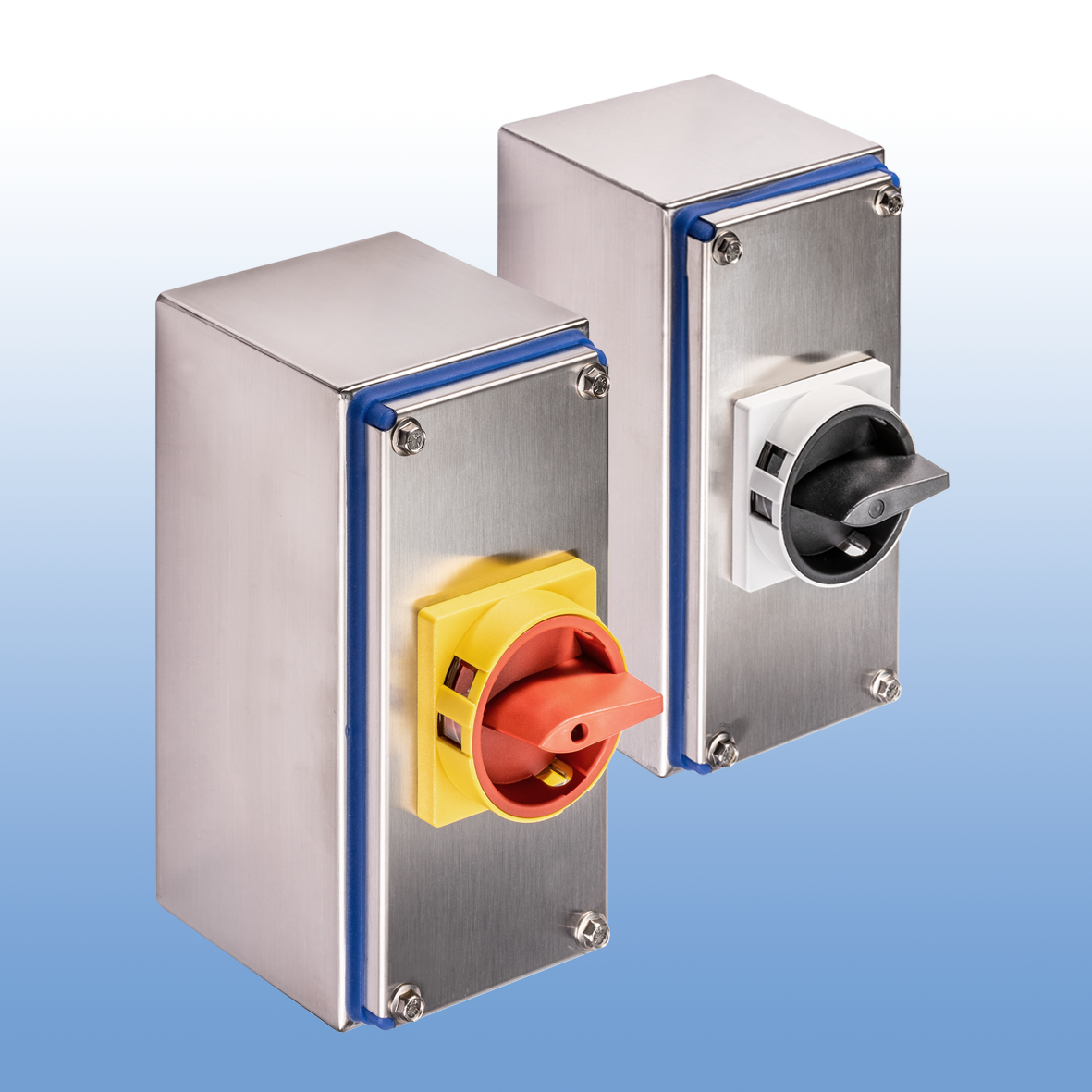

Repair Switches in Stainless Steel Enclosures
Kraus & Naimer’s repair switches in stainless steel enclosures are especially suited for use in harsh environments.
Whether in the chemical industry, food production, or construction, this product line is ideal. Components in these applications are exposed to demanding conditions such as aggressive dusts, paints, or solvents.
Thanks to their compact design, IP66 protection rating and IK08 impact resistance, these switches are perfect for installation in confined spaces and under challenging environmental influences.
The lockable handles are available in both black and red.
Each enclosure is equipped with standard entries for M20, M25, or M40 cable glands. Matching mounting accessories enable fast and cost-effective installation.
If you have questions about specific requirements, our sales team will be happy to assist you.
Main switch; ON/OFF switch; 3-pole; 0-I; Base mounting/DIN rail mounting; Padlock Device; red; Shaft Extension; Auxiliary Contact
- Product number: 70020262
- lu/lth: 25 A
- AC-3: 5,5 kW
- AC-23A: 7,5 kW
- Description: KG20.T203/NLB512.IKN
Main switch; ON/OFF switch; 3-pole; 0-I; Base mounting/DIN rail mounting; Shaft Extension; Padlock Device; black; Auxiliary Contact
- Product number: 70020273
- lu/lth: 63 A
- AC-3: 18,5 kW
- AC-23A: 22 kW
- Description: KG64.T103/NLB522.IKN
Main switch; ON/OFF switch; 3-pole; 0-I; Base mounting/DIN rail mounting; Shaft Extension; Padlock Device; black; Auxiliary Contact
- Product number: 70020271
- lu/lth: 80 A
- AC-3: 22 kW
- AC-23A: 30 kW
- Description: KG80.T103/NLB522.IKN
Main switch; ON/OFF switch; 3-pole; 0-I; Base mounting/DIN rail mounting; Shaft Extension; Padlock Device; black; Auxiliary Contact
- Product number: 70020258
- lu/lth: 40 A
- AC-3: 11 kW
- AC-23A: 15 kW
- Description: KG41.T103/NLB522.IKN

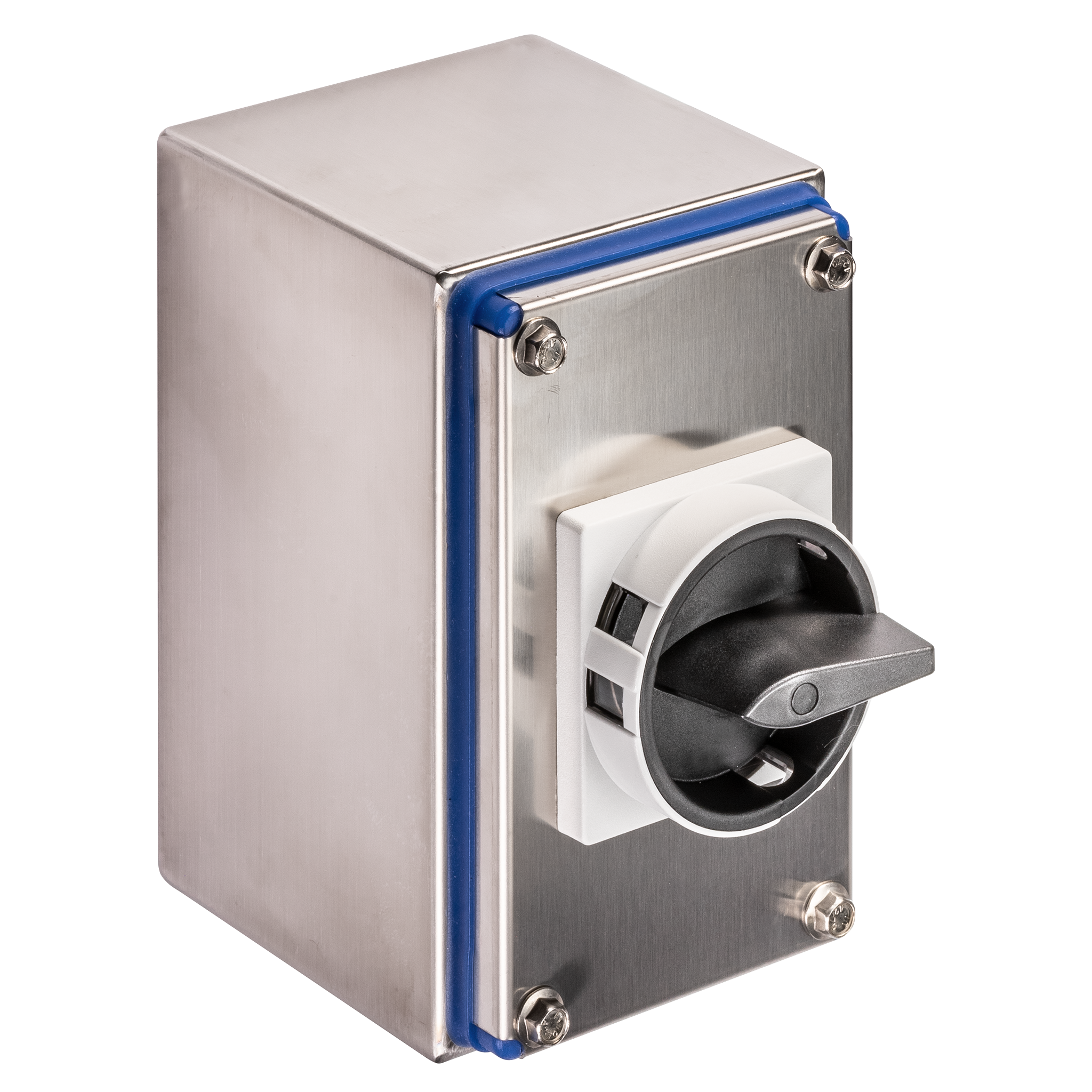

Main switch; ON/OFF switch; 3-pole; 0-I; Base mounting/DIN rail mounting; Shaft Extension; Padlock Device; black; Auxiliary Contact
- Product number: 70020272
- lu/lth: 25 A
- AC-3: 5,5 kW
- AC-23A: 7,5 kW
- Description: KG20.T103/NLB522.IKN
Main switch; ON/OFF switch; 3-pole; 0-I; Base mounting/DIN rail mounting; Shaft Extension; Padlock Device; black; Auxiliary Contact
- Product number: 70020257
- lu/lth: 32 A
- AC-3: 7,5 kW
- AC-23A: 11 kW
- Description: KG32.T103/NLB522.IKN
Main switch; ON/OFF switch; 3-pole; 0-I; Base mounting/DIN rail mounting; Shaft Extension; Padlock Device; black; Auxiliary Contact
- Product number: 70019434
- lu/lth: 100 A
- AC-3: 30 kW
- AC-23A: 37 kW
- Description: KG100.T103/NLB522.IKN

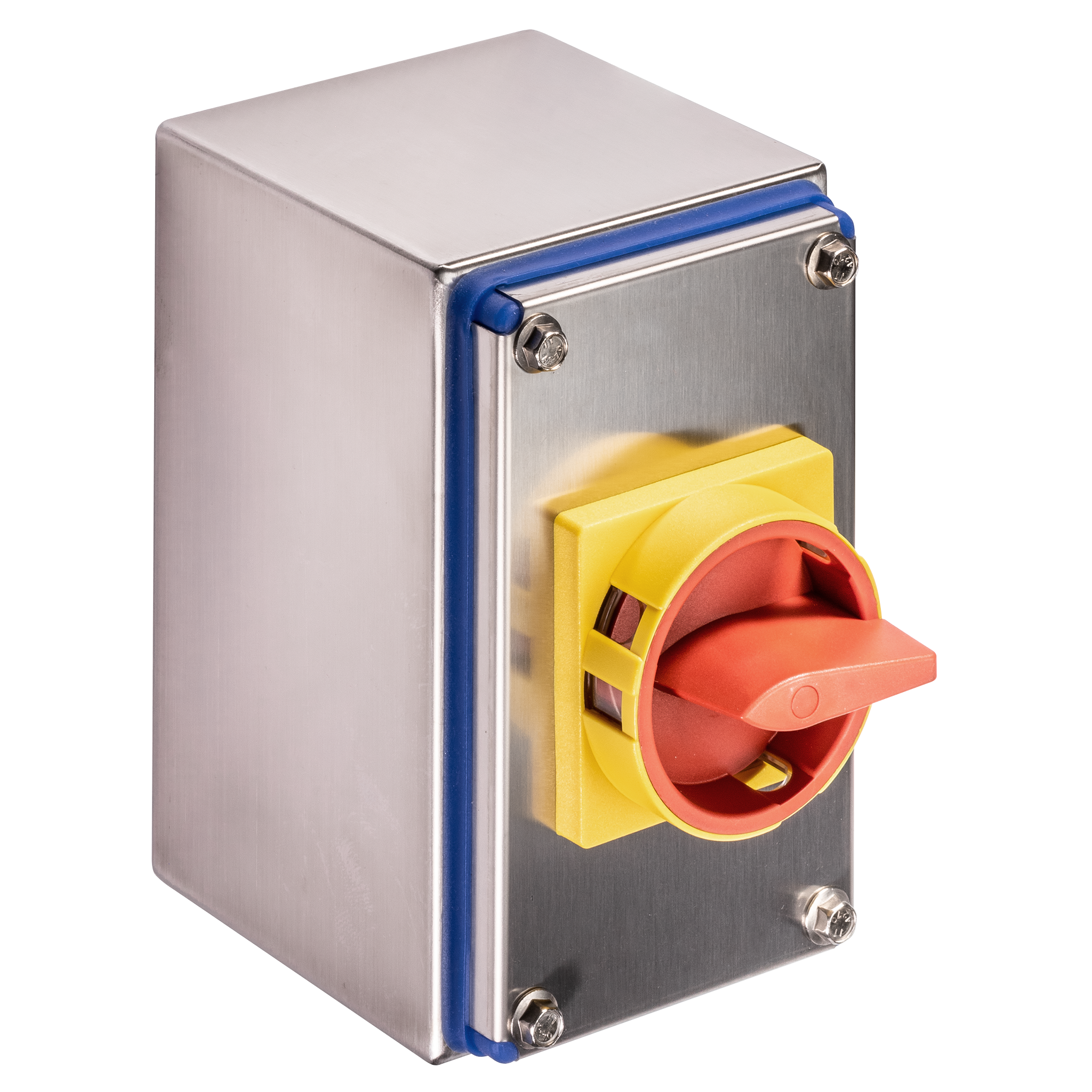

Main switch; ON/OFF switch; 3-pole; 0-I; Base mounting/DIN rail mounting; Shaft Extension; Padlock Device; red; Auxiliary Contact
- Product number: 70020270
- lu/lth: 32 A
- AC-3: 7,5 kW
- AC-23A: 11 kW
- Description: KG32.T203/NLB512.IKN
Main switch; ON/OFF switch; 3-pole; 0-I; Base mounting/DIN rail mounting; Shaft Extension; Padlock Device; red; Auxiliary Contact
- Product number: 70020260
- lu/lth: 80 A
- AC-3: 22 kW
- AC-23A: 30 kW
- Description: KG80.T203/NLB512.IKN

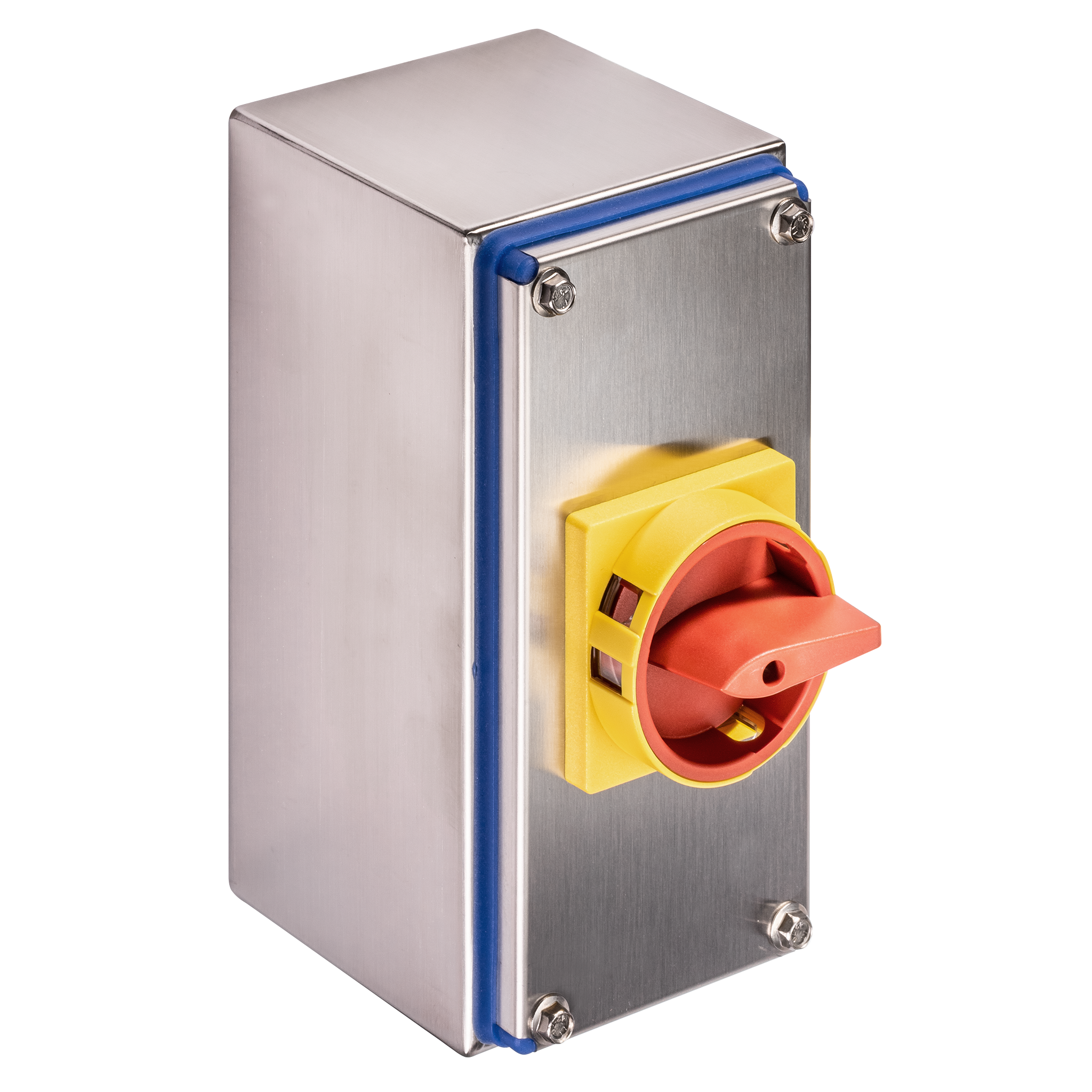

Main switch; ON/OFF switch; 3-pole; 0-I; Base mounting/DIN rail mounting; Shaft Extension; Padlock Device; red; Auxiliary Contact
- Product number: 70020276
- lu/lth: 63 A
- AC-3: 18,5 kW
- AC-23A: 22 kW
- Description: KG64.T203/NLB512.IKN
Main switch; ON/OFF switch; 3-pole; 0-I; Base mounting/DIN rail mounting; Shaft Extension; Padlock Device; red; Auxiliary Contact
- Product number: 70020274
- lu/lth: 40 A
- AC-3: 11 kW
- AC-23A: 15 kW
- Description: KG41.T203/NLB512.IKN

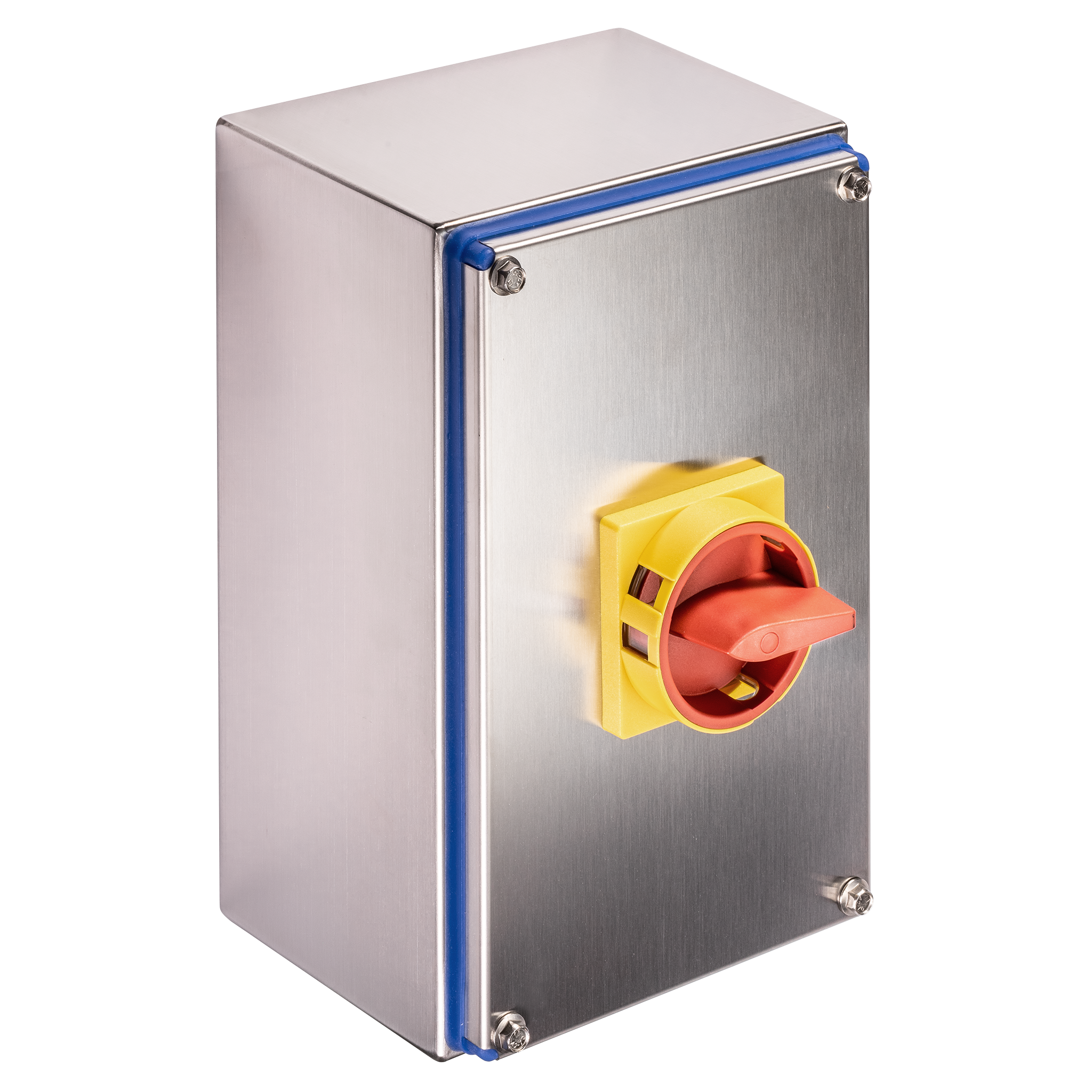

Main switch; ON/OFF switch; 3-pole; 0-I; Base mounting/DIN rail mounting; Shaft Extension; Padlock Device; red; Auxiliary Contact
- Product number: 70020266
- lu/lth: 100 A
- AC-3: 30 kW
- AC-23A: 37 kW
- Description: KG100.T203/NLB512.IKN
Main switch; ON/OFF switch; 4-pole; 0-I; Base mounting/DIN rail mounting; Padlock Device; red; Shaft Extension; Auxiliary Contact
- Product number: 70020267
- lu/lth: 25 A
- AC-3: 5,5 kW
- AC-23A: 7,5 kW
- Description: KG20.T204/NLB512.IKN
Main switch; ON/OFF switch; 4-pole; 0-I; Base mounting/DIN rail mounting; Shaft Extension; Padlock Device; black; Auxiliary Contact
- Product number: 70020256
- lu/lth: 25 A
- AC-3: 5,5 kW
- AC-23A: 7,5 kW
- Description: KG20.T104/NLB522.IKN
Main switch; ON/OFF switch; 4-pole; 0-I; Base mounting/DIN rail mounting; Shaft Extension; Padlock Device; black; Auxiliary Contact
- Product number: 70020263
- lu/lth: 40 A
- AC-3: 11 kW
- AC-23A: 15 kW
- Description: KG41.T104/NLB522.IKN
Main switch; ON/OFF switch; 4-pole; 0-I; Base mounting/DIN rail mounting; Shaft Extension; Padlock Device; black; Auxiliary Contact
- Product number: 70020275
- lu/lth: 32 A
- AC-3: 7,5 kW
- AC-23A: 11 kW
- Description: KG32.T104/NLB522.IKN

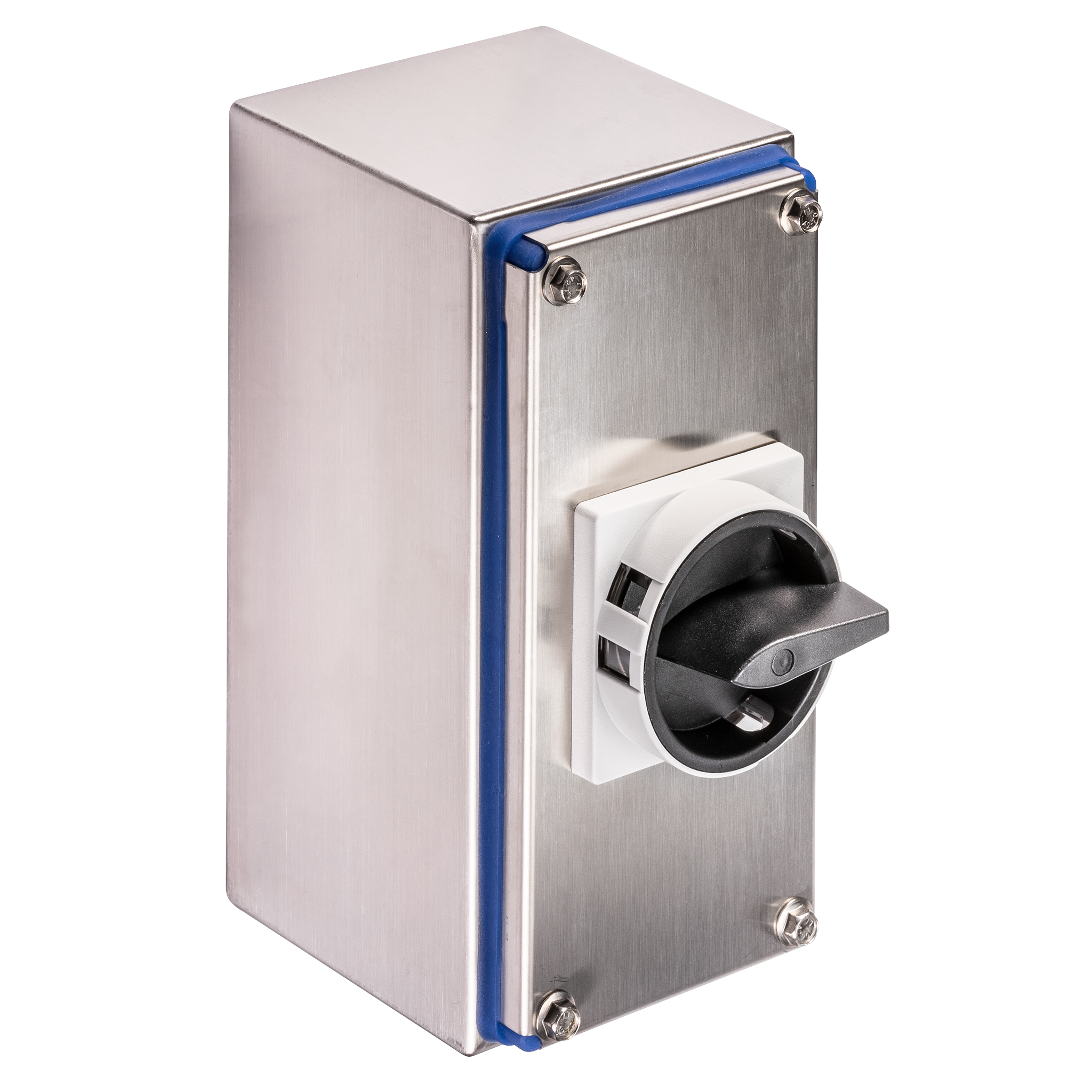

Main switch; ON/OFF switch; 4-pole; 0-I; Base mounting/DIN rail mounting; Shaft Extension; Padlock Device; black; Auxiliary Contact
- Product number: 70020259
- lu/lth: 63 A
- AC-3: 18,5 kW
- AC-23A: 22 kW
- Description: KG64.T104/NLB522.IKN
Main switch; ON/OFF switch; 4-pole; 0-I; Base mounting/DIN rail mounting; Shaft Extension; Padlock Device; red; Auxiliary Contact
- Product number: 70020277
- lu/lth: 32 A
- AC-3: 7,5 kW
- AC-23A: 11 kW
- Description: KG32.T204/NLB512.IKN
Main switch; ON/OFF switch; 4-pole; 0-I; Base mounting/DIN rail mounting; Shaft Extension; Padlock Device; red; Auxiliary Contact
- Product number: 70020265
- lu/lth: 40 A
- AC-3: 11 kW
- AC-23A: 15 kW
- Description: KG41.T204/NLB512.IKN
