Ammeter changeover switch; 0-1-2-3; DIN rail mounting
Product information "Ammeter changeover switch; 0-1-2-3; DIN rail mounting"

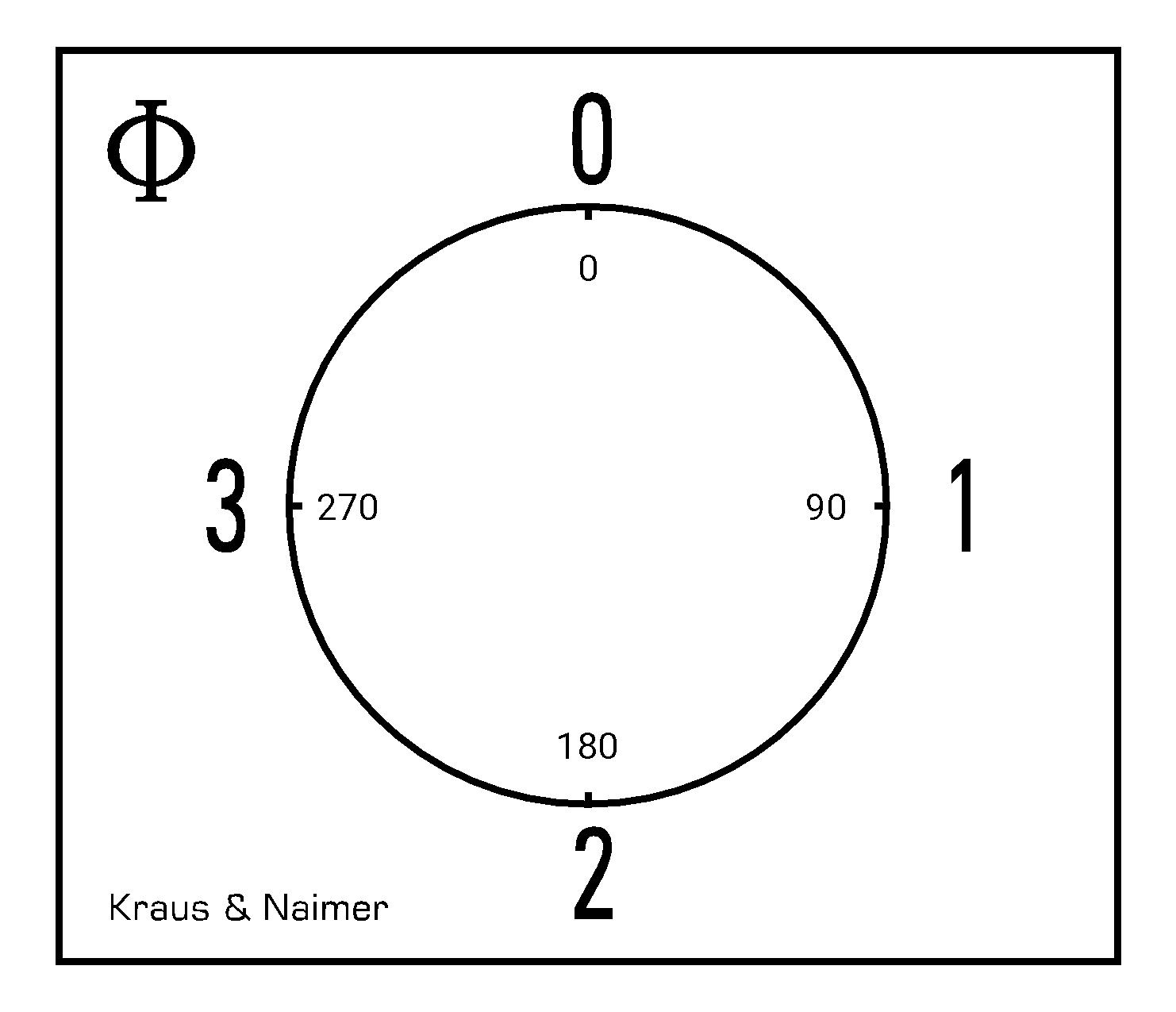

Ammeter changeover switch, 3 instrument transformer circuits; 90°; 0-1-2-3; Snap-on base mounting for track EN60715, face plate for 45mm knock-out and the handle are adjustable in height, IP40; 20 A; 5,5 kW (AC-3, 380 - 440 V); 7,5 kW (AC-23A, 380 - 440 V)
| Switch type: | CG8 |
|---|---|
| Rated continuous current lu/lth: | 20 A |
| AC-3, 3-phase, 3-pole, 380 - 440V: | 5,5 kW |
| AC-23A, 3-phase, 3-pole, 380 - 440V: | 7,5 kW |
| Switching programme: | A048 |
| Name: | CG8.A048.VE21 |
| Type of contact development: | Ammeter changeover switch, 3 instrument transformer circuits |
| Installation described: | Snap-on base mounting for track EN60715, face plate for 45mm knock-out and the handle are adjustable in height, IP40 |
| Mounting unit: | VE21 |
| Type of installation: | Base mounting |
| Detailed installation type: | DIN rail mounting |
| Switch disconnector IEC60947-3: | N |
| Faceplate color: | electric gray |
| Handle Color: | electric gray |
