Changeover switch w. OFF; 3-pole; 1-0-2; Base mounting/DIN rail mounting
Product information "Changeover switch w. OFF; 3-pole; 1-0-2; Base mounting/DIN rail mounting"

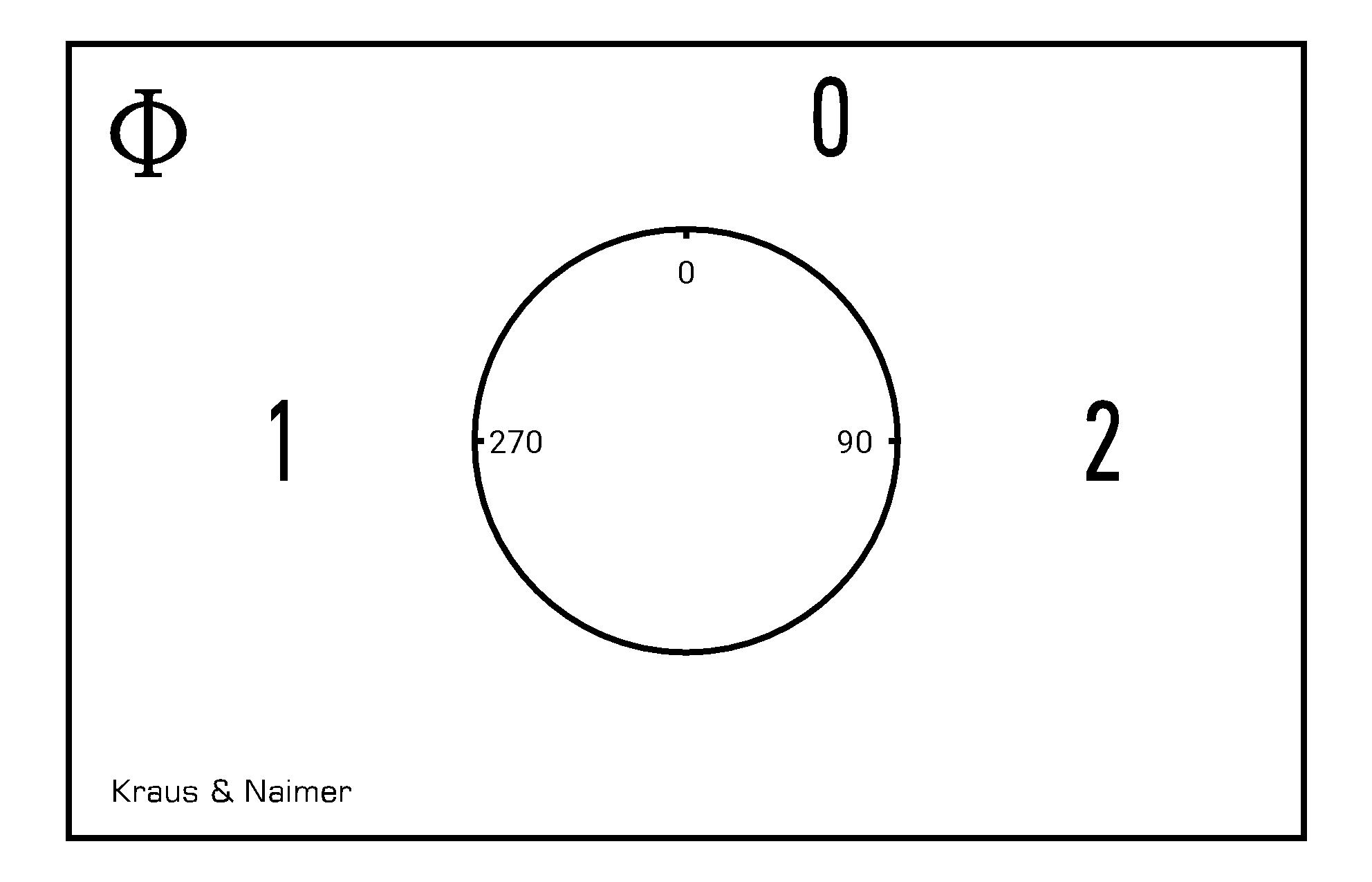

Changeover switch with OFF position; 3-pole; 90°; 1-0-2; Snap-on base mounting for track EN60715 and face plate for 45mm knock-out, IP40; 100 A; 30 kW (AC-3, 380 - 440 V); 37 kW (AC-23A, 380 - 440 V)
| Switch type: | KG100 |
|---|---|
| Rated continuous current lu/lth: | 100 A |
| AC-3, 3-phase, 3-pole, 380 - 440V: | 30 kW |
| AC-23A, 3-phase, 3-pole, 380 - 440V: | 37 kW |
| Switching programme: | K900 |
| Name: | KG100.K900.VE2 |
| Type of contact development: | Changeover switch with OFF position |
| Installation described: | Snap-on base mounting for track EN60715 and face plate for 45mm knock-out, IP40 |
| No. of poles: | 3 |
| Mounting unit: | VE2 |
| Type of installation: | Base mounting |
| Detailed installation type: | Base mounting/DIN rail mounting |
| Switch disconnector IEC60947-3: | N |
| Faceplate color: | electric gray |
| Handle Color: | electric gray |
