Changeover switch w. OFF; 3-pole; 1-0-2; Base mounting/DIN rail mounting
Product information "Changeover switch w. OFF; 3-pole; 1-0-2; Base mounting/DIN rail mounting"

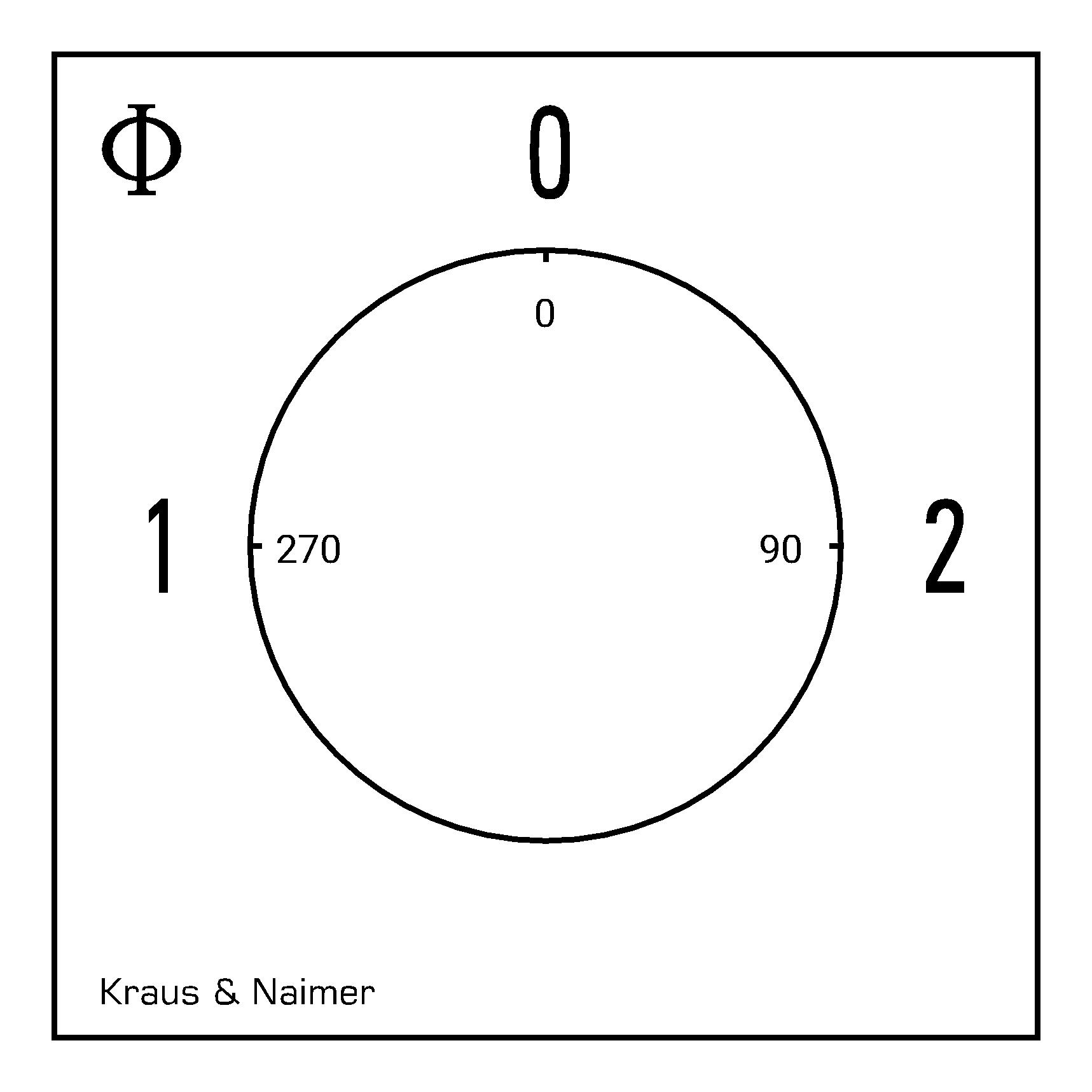

Changeover switch with OFF position; 3-pole; 90°; 1-0-2; four hole base mounting; Front side IP40; 63 A; 18,5 kW (AC-3, 380 - 440 V); 22 kW (AC-23A, 380 - 440 V)
| Switch type: | KA63B |
|---|---|
| Rated continuous current lu/lth: | 63 A |
| AC-3, 3-phase, 3-pole, 380 - 440V: | 18,5 kW |
| AC-23A, 3-phase, 3-pole, 380 - 440V: | 22 kW |
| Switching programme: | T903 |
| Name: | KA63B.T903.VE |
| Type of contact development: | Changeover switch with OFF position |
| Installation described: | four hole base mounting |
| No. of poles: | 3 |
| Mounting unit: | VE |
| Type of installation: | Base mounting |
| Detailed installation type: | Base mounting/DIN rail mounting |
| Switch disconnector IEC60947-3: | Y |
| Faceplate color: | brushed aluminum |
| Handle Color: | black |
