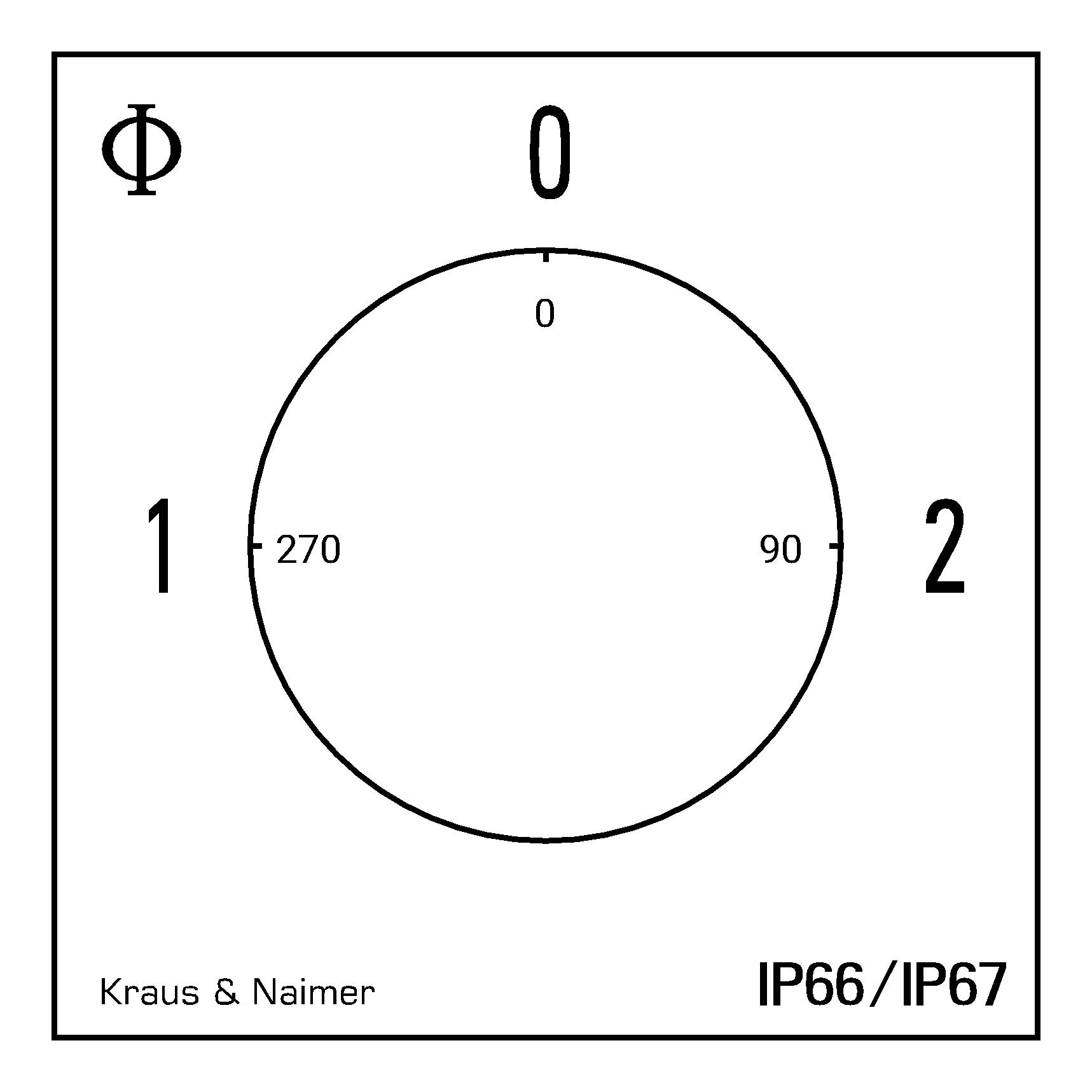

Changeover switch w. OFF; 3-pole; 1-0-2; Plastic housing
Product information "Changeover switch w. OFF; 3-pole; 1-0-2; Plastic housing"
Changeover switch with OFF position; 3-pole; 90°; 1-0-2; UV-resistance enclosure, IP66/67; 32 A; 7,5 kW (AC-3, 380 - 440 V); 11 kW (AC-23A, 380 - 440 V)
| Switch type: | KG32B |
|---|---|
| Rated continuous current lu/lth: | 32 A |
| AC-3, 3-phase, 3-pole, 380 - 440V: | 7,5 kW |
| AC-23A, 3-phase, 3-pole, 380 - 440V: | 11 kW |
| Switching programme: | K900 |
| Name: | KG32B.K900.KL10 |
| Type of contact development: | Changeover switch with OFF position |
| Installation described: | UV-resistance enclosure, IP66/67 |
| No. of poles: | 3 |
| Mounting unit: | KL10 |
| Type of installation: | Plastic housing |
| Detailed installation type: | Plastic housing |
| Switch disconnector IEC60947-3: | N |
| Faceplate color: | brushed aluminum |
| Handle Color: | electric gray |
