DC - Changeover switch w. OFF; 2-pole; 1-0-2; Panel mounting 4-hole
Product information "DC - Changeover switch w. OFF; 2-pole; 1-0-2; Panel mounting 4-hole"

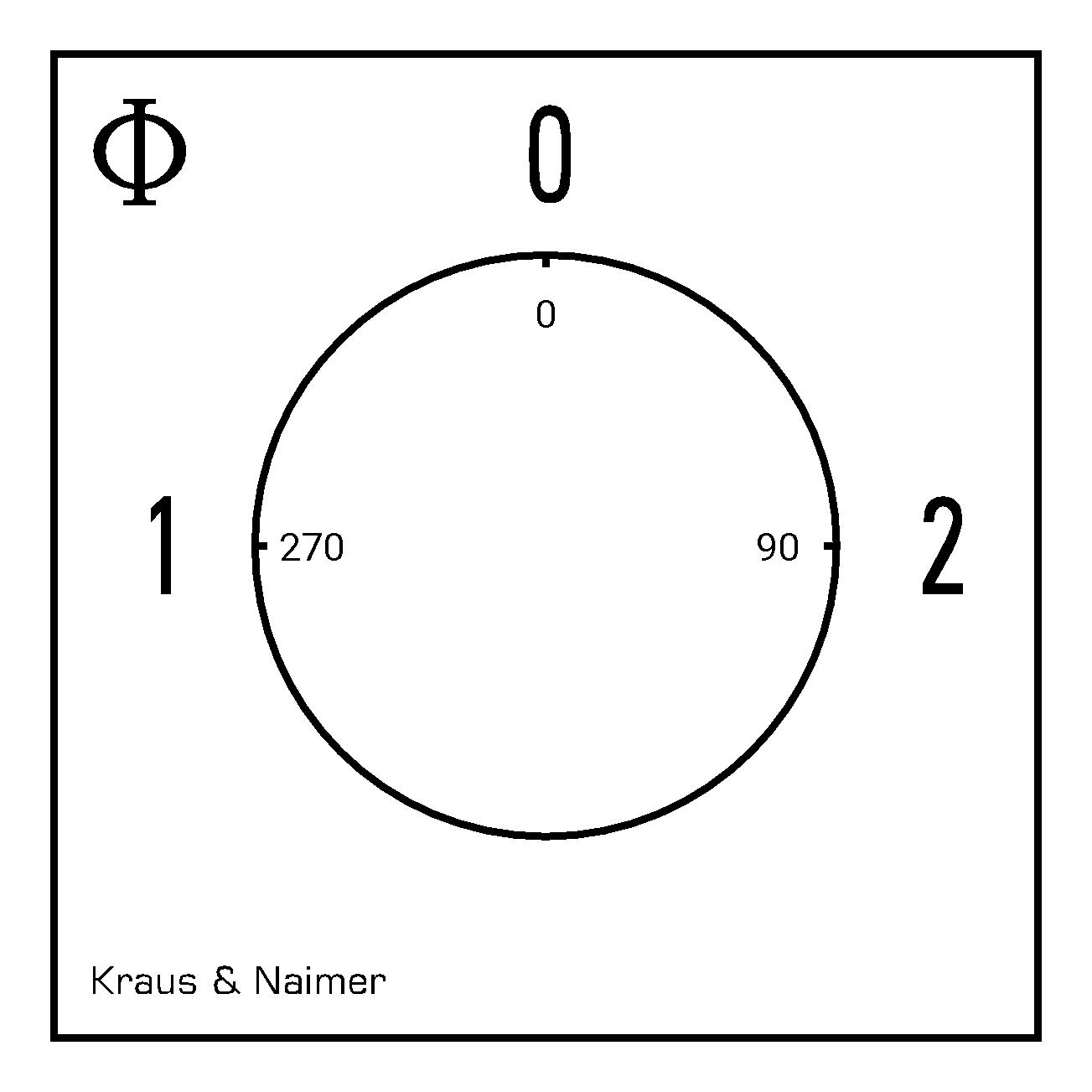

DC - Changeover switch with OFF position; 2-pole; 90°; 1-0-2; four hole panel mounting; Front side IP40; 20 A
| Switch type: | G20S |
|---|---|
| Rated continuous current lu/lth: | 20 A |
| AC-3, 3-phase, 3-pole, 380 - 440V: | 2,2 kW |
| AC-23A, 3-phase, 3-pole, 380 - 440V: | 3 kW |
| Switching programme: | TD9322 |
| Name: | G20S.TD9322.E |
| Type of contact development: | Changeover switch with OFF position |
| Installation described: | four hole panel mounting |
| No. of poles: | 2 |
| Mounting unit: | E |
| Type of installation: | Panel mounting |
| Detailed installation type: | Panel mounting 4-hole |
| Switch disconnector IEC60947-3: | Y |
| Faceplate color: | brushed aluminum |
| Handle Color: | black |
