DC - Main switch; ON/OFF switch; 8-pole; 0-I; Base mounting/DIN rail mounting; Padlock Device; electric gray, locking bar flag red
Product information "DC - Main switch; ON/OFF switch; 8-pole; 0-I; Base mounting/DIN rail mounting; Padlock Device; electric gray, locking bar flag red"

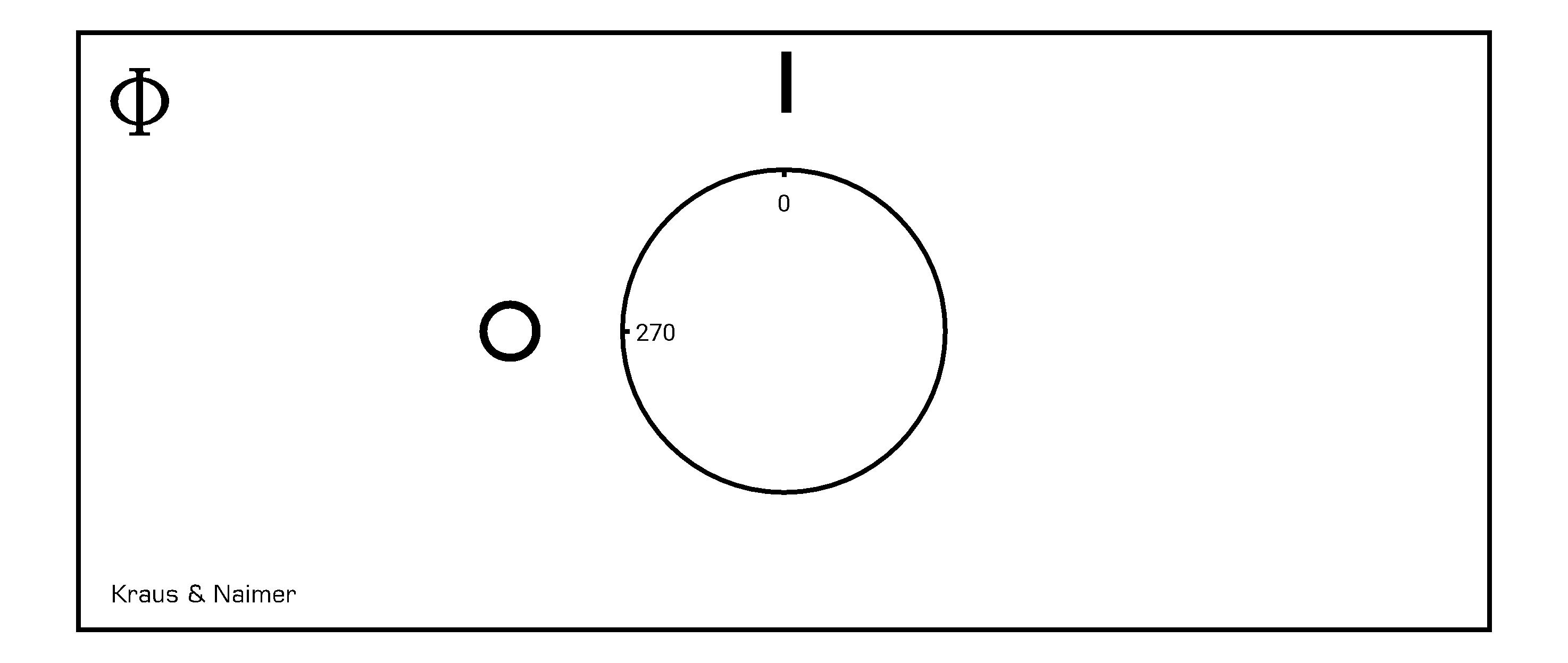

DC - Main switch; ON/OFF switch; 8-pole; 90°; 0-I; Snap-on base mounting for track EN60715 and face plate for 45mm knock-out; Front side IP40; 50 A; Padlock Device; electric gray, locking bar flag red
| Switch type: | KGD40B |
|---|---|
| Rated continuous current lu/lth: | 50 A |
| Switching programme: | TD308 |
| Name: | KGD40B.TD308.VE2.AT2PV |
| Type of contact development: | ON/OFF switch |
| Installation described: | Snap-on base mounting for track EN60715 and face plate for 45mm knock-out, IP40 |
| No. of poles: | 8 |
| Mounting unit: | VE2 |
| Type of installation: | Base mounting |
| Detailed installation type: | Base mounting/DIN rail mounting |
| Switch disconnector IEC60947-3: | Y |
| Faceplate color: | electric gray |
| Handle Color: | electric gray, locking bar flag red |
