Key switch; Changeover switch w/o OFF; 2-pole; 1-2; single hole mounting; Key-Lock Device
Product information "Key switch; Changeover switch w/o OFF; 2-pole; 1-2; single hole mounting; Key-Lock Device"
Key switch; Changeover switch without OFF position; 2-pole; 60°; 1-2; single hole mounting with square front plate, IP66/67/69k; 10 A; 2,2 kW (AC-3, 380 - 440 V); 3 kW (AC-23A, 380 - 440 V); Key-Lock Device
| Switch type: | CG4 |
|---|---|
| Rated continuous current lu/lth: | 10 A |
| AC-3, 3-phase, 3-pole, 380 - 440V: | 2,2 kW |
| AC-23A, 3-phase, 3-pole, 380 - 440V: | 3 kW |
| Switching programme: | A221 |
| Name: | CG4.A221*A-V750.FS2 |
| Type of contact development: | Changeover switch without OFF position |
| Installation described: | single hole mounting with square front plate, IP66/67/69k |
| No. of poles: | 2 |
| Mounting unit: | FS2 |
| Type of installation: | Panel mounting |
| Detailed installation type: | single hole mounting |
| Switch disconnector IEC60947-3: | N |

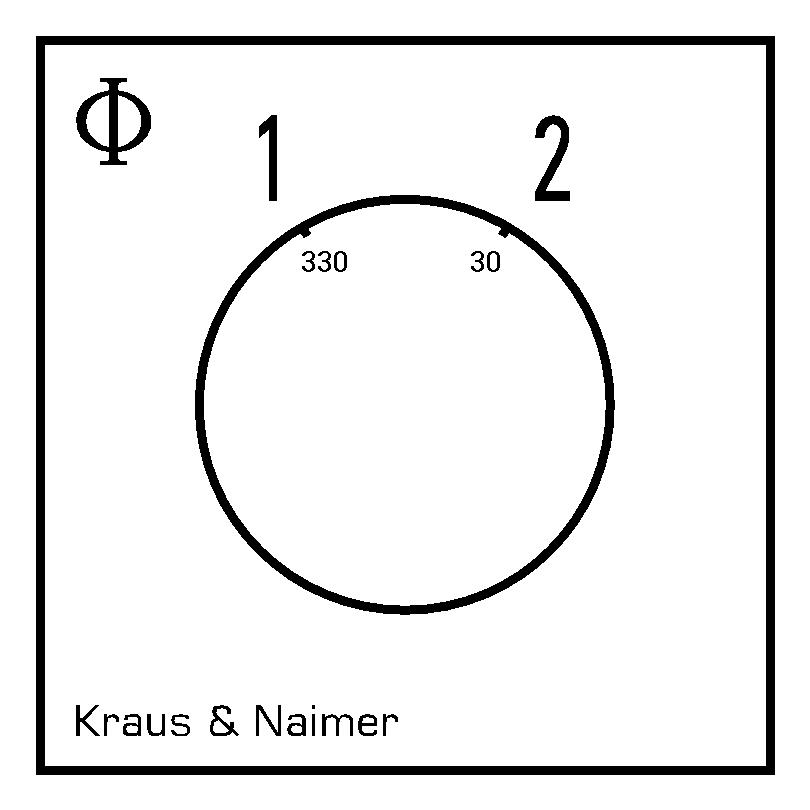

| Faceplate color: | brushed aluminum |
