Key switch; Changeover switch w. OFF, SR; 1-pole; 1-0-1; DIN rail mounting; Key-Lock Device
Product information "Key switch; Changeover switch w. OFF, SR; 1-pole; 1-0-1; DIN rail mounting; Key-Lock Device"

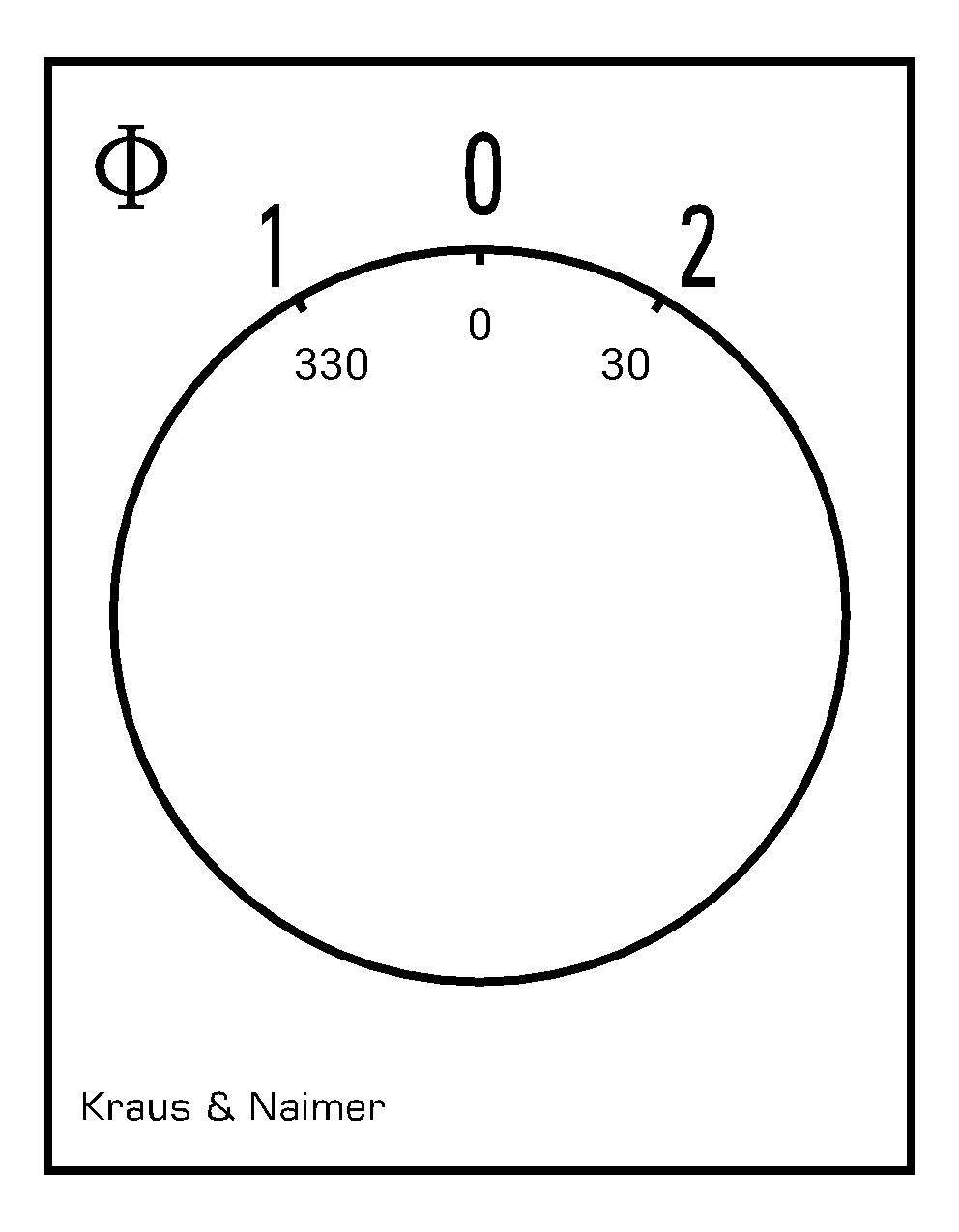

Key switch; Changeover switch with OFF position and spring return to OFF; 1-pole; 30°; 1-0-1; Snap-on base mounting for track EN60715, face plate for 45mm knock-out and the handle are adjustable in height, IP40; 10 A; 2,2 kW (AC-3, 380 - 440 V); 3 kW (AC-23A, 380 - 440 V); Key-Lock Device
| Switch type: | CG4 |
|---|---|
| Rated continuous current lu/lth: | 10 A |
| AC-3, 3-phase, 3-pole, 380 - 440V: | 2,2 kW |
| AC-23A, 3-phase, 3-pole, 380 - 440V: | 3 kW |
| Switching programme: | A214 |
| Name: | CG4.A214*A-V751.VE21 |
| Type of contact development: | Changeover switch with OFF position and spring return to OFF |
| Installation described: | Snap-on base mounting for track EN60715, face plate for 45mm knock-out and the handle are adjustable in height, IP40 |
| No. of poles: | 1 |
| Mounting unit: | VE21 |
| Type of installation: | Base mounting |
| Detailed installation type: | DIN rail mounting |
| Switch disconnector IEC60947-3: | N |
| Faceplate color: | electric gray |
