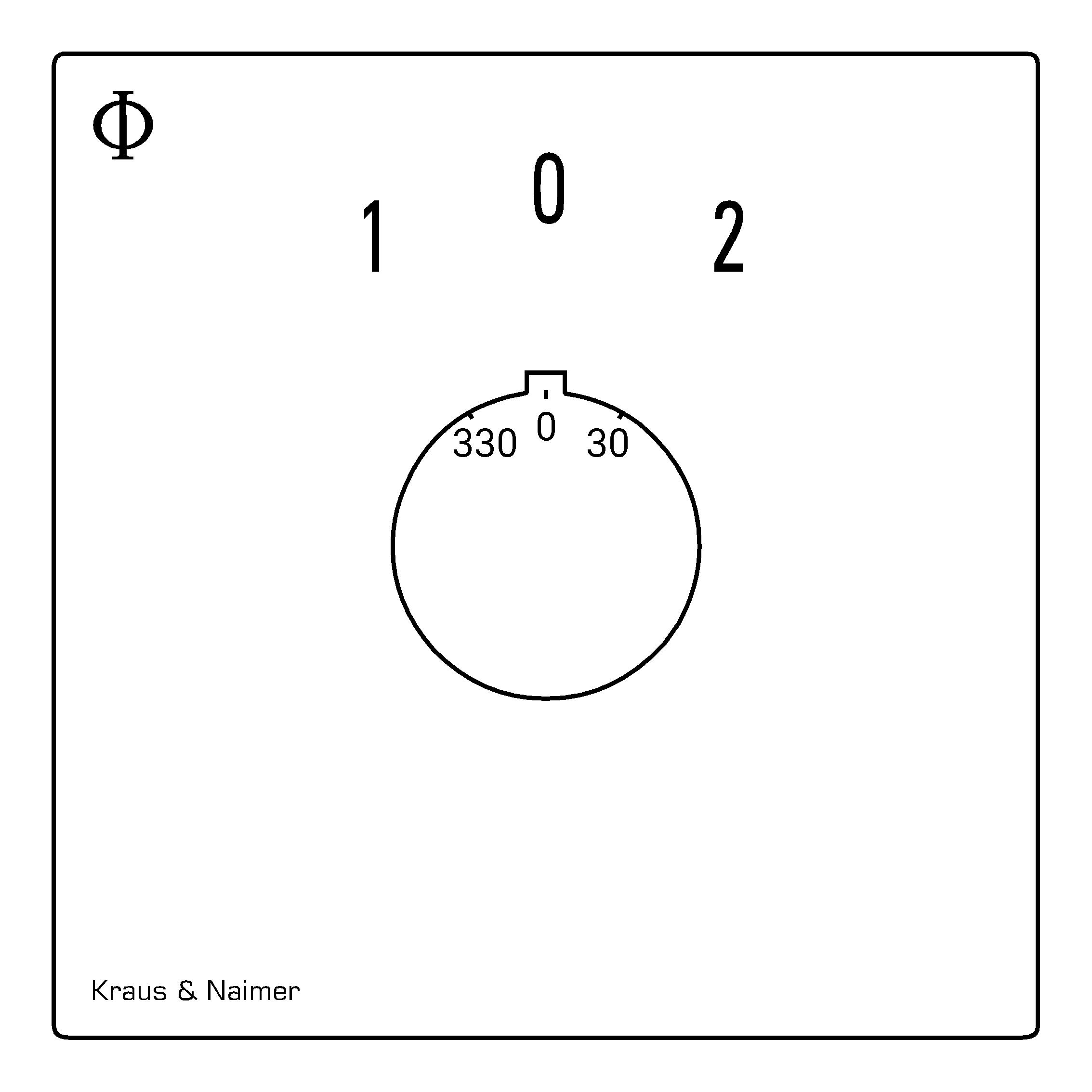

Key switch; Changeover switch w. OFF, SR; 1-pole; 1-0-1; Flush mounting; Key-Lock Device
Product information "Key switch; Changeover switch w. OFF, SR; 1-pole; 1-0-1; Flush mounting; Key-Lock Device"
Key switch; Changeover switch with OFF position and spring return to OFF; 1-pole; 30°; 1-0-1; Plaster depth trim; IP40; 20 A; 5,5 kW (AC-3, 380 - 440 V); 7,5 kW (AC-23A, 380 - 440 V); Key-Lock Device
| Switch type: | CA10 |
|---|---|
| Rated continuous current lu/lth: | 20 A |
| AC-3, 3-phase, 3-pole, 380 - 440V: | 5,5 kW |
| AC-23A, 3-phase, 3-pole, 380 - 440V: | 7,5 kW |
| Switching programme: | A214 |
| Name: | CA10.A214*A-V751.UE1 |
| Type of contact development: | Changeover switch with OFF position and spring return to OFF |
| Installation described: | Plaster depth trim; IP40 |
| No. of poles: | 1 |
| Mounting unit: | UE1 |
| Type of installation: | Flush mounting |
| Detailed installation type: | Flush mounting |
| Switch disconnector IEC60947-3: | N |
| Faceplate color: | white |
