Key switch; Changeover switch w. OFF, SR; 1-pole; 1-0-1; Plastic housing; Key-Lock Device
Product information "Key switch; Changeover switch w. OFF, SR; 1-pole; 1-0-1; Plastic housing; Key-Lock Device"
Key switch; Changeover switch with OFF position and spring return to OFF; 1-pole; 30°; 1-0-1; Plastic enclosure with M25 entries, IP42; 25 A; 7,5 kW (AC-3, 380 - 440 V); 11 kW (AC-23A, 380 - 440 V); Key-Lock Device
| Switch type: | CA20 |
|---|---|
| Rated continuous current lu/lth: | 25 A |
| AC-3, 3-phase, 3-pole, 380 - 440V: | 7,5 kW |
| AC-23A, 3-phase, 3-pole, 380 - 440V: | 11 kW |
| Switching programme: | A214 |
| Name: | CA20.A214*A-V751.PNL4 |
| Type of contact development: | Changeover switch with OFF position and spring return to OFF |
| Installation described: | Plastic enclosure with M25 entries, IP42 |
| No. of poles: | 1 |
| Mounting unit: | PNL4 |
| Type of installation: | Plastic housing |
| Detailed installation type: | Plastic housing |
| Switch disconnector IEC60947-3: | N |

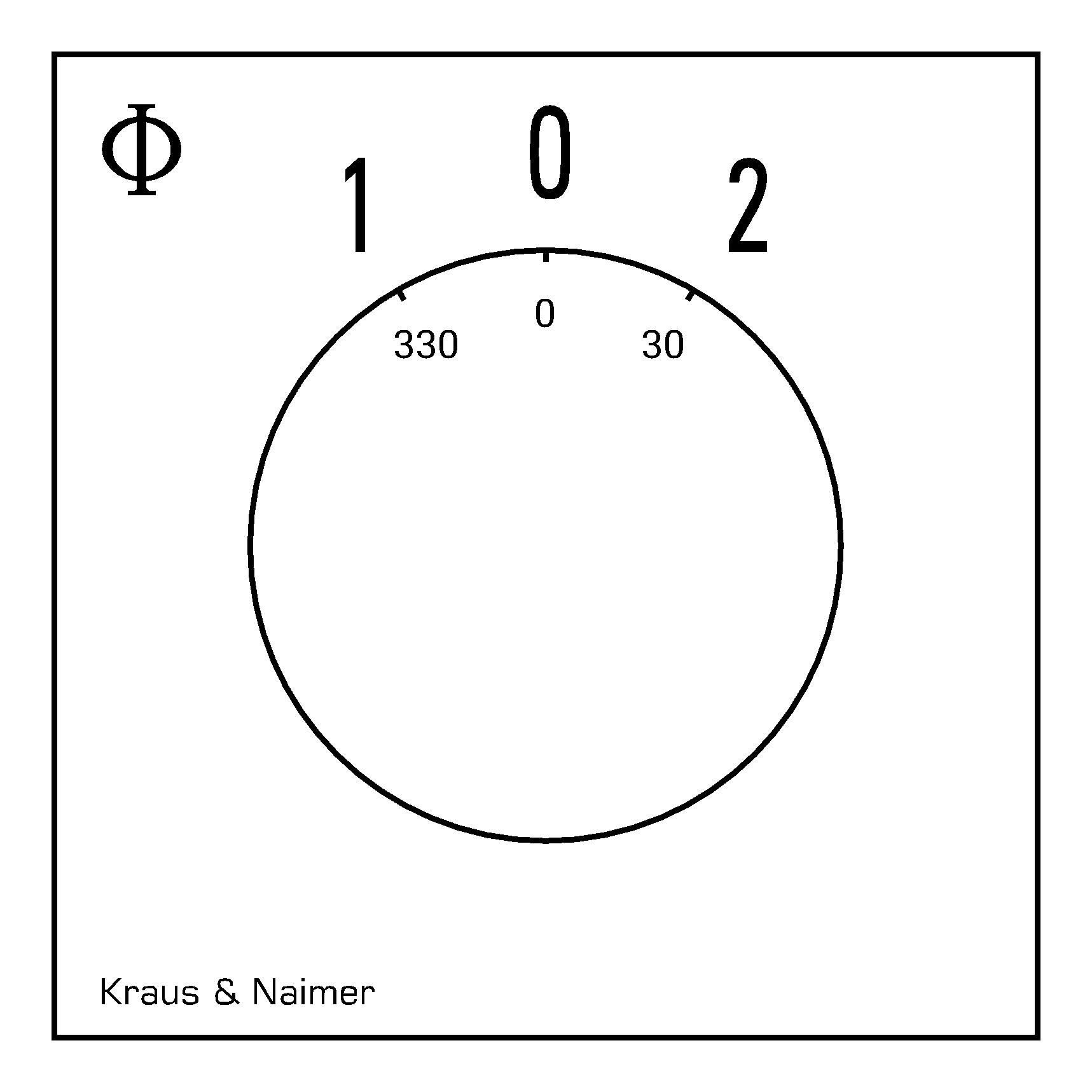

| Faceplate color: | brushed aluminum |
