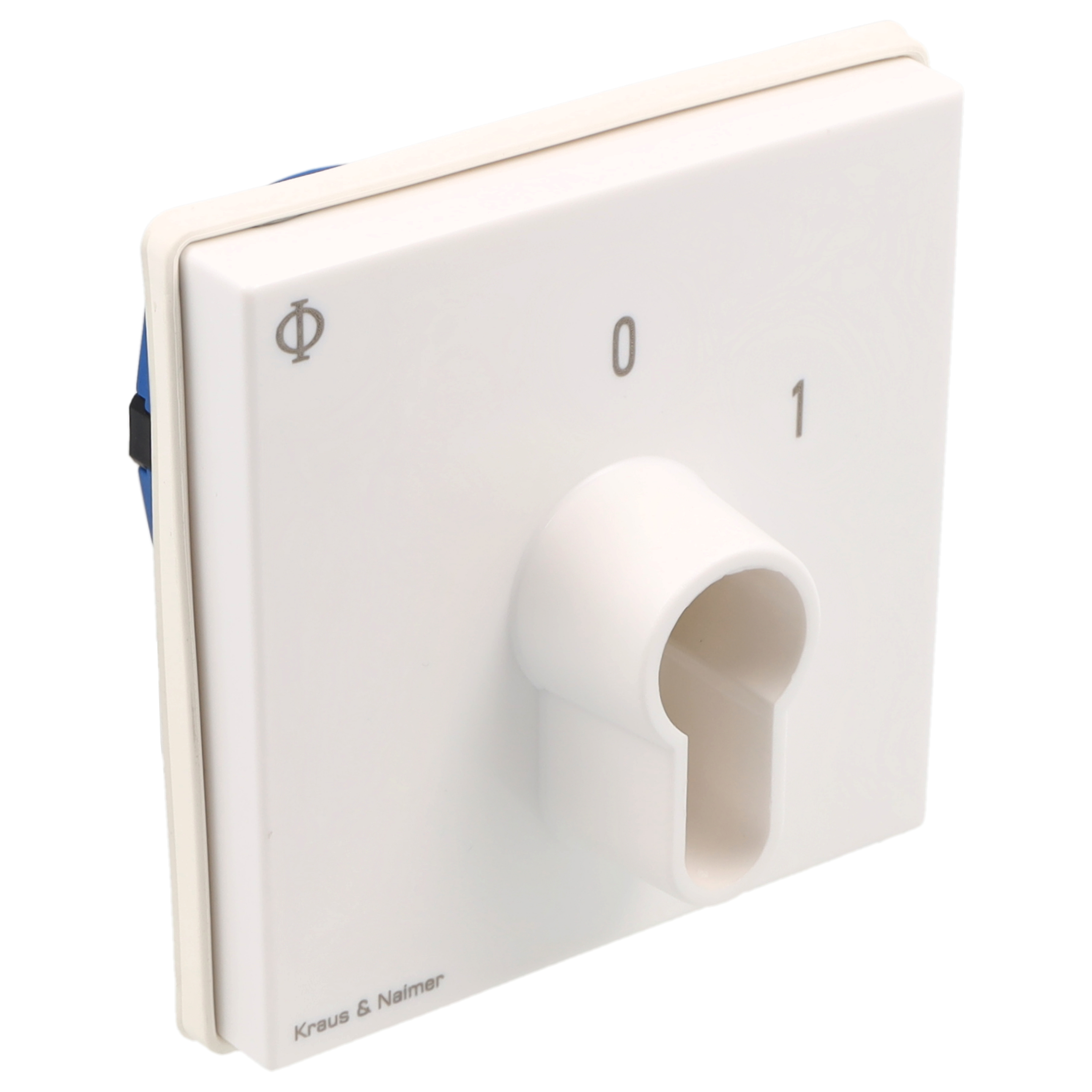

Key switch; ON/OFF switch; 1-pole; 0-1; Flush mounting; Key-Lock Device
Product information "Key switch; ON/OFF switch; 1-pole; 0-1; Flush mounting; Key-Lock Device"

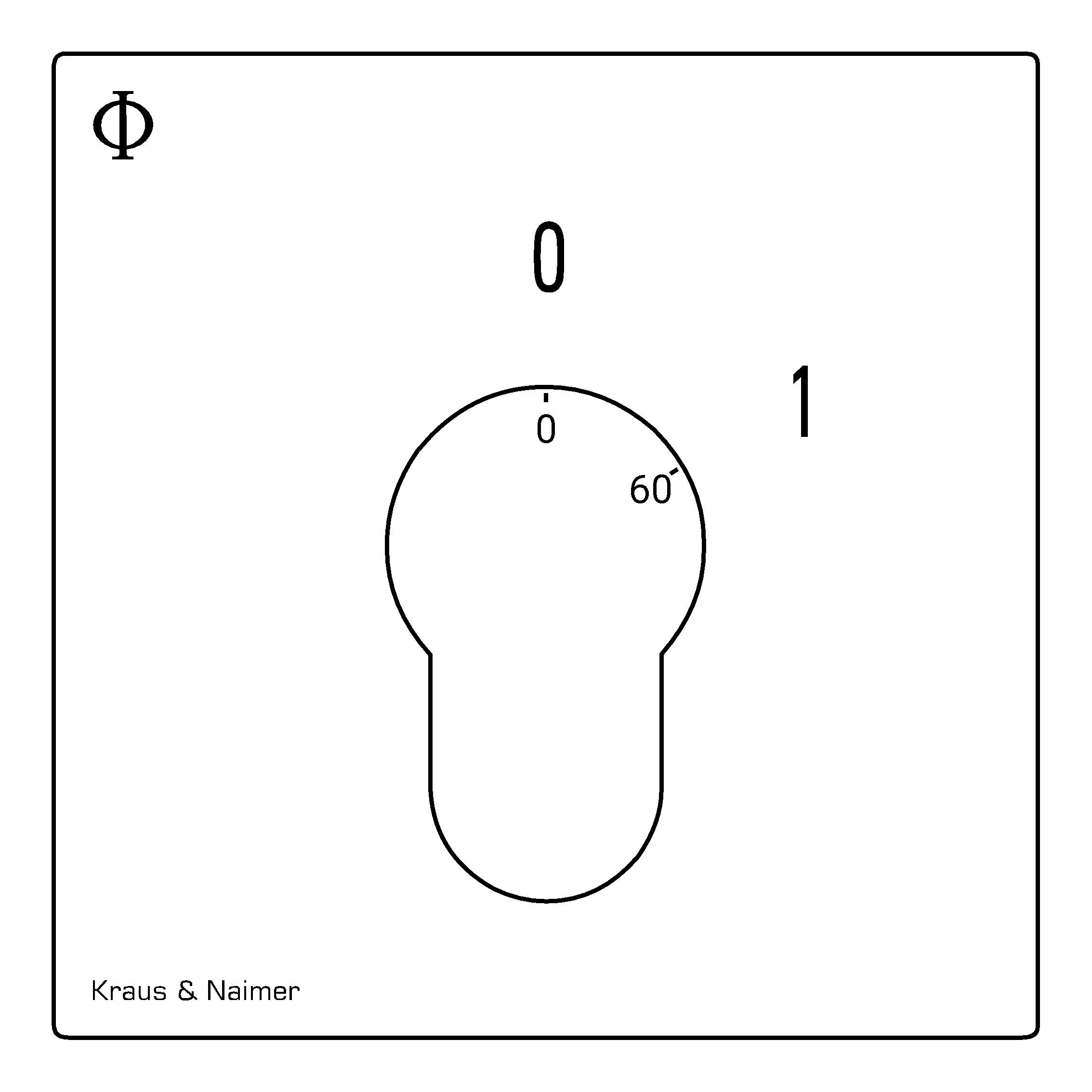

Key switch; ON/OFF switch; 1-pole; 60°; 0-1; Plaster depth trim; IP40; 25 A; 7,5 kW (AC-3, 380 - 440 V); 11 kW (AC-23A, 380 - 440 V); Key-Lock Device
| Switch type: | BA20 |
|---|---|
| Rated continuous current lu/lth: | 25 A |
| AC-3, 3-phase, 3-pole, 380 - 440V: | 7,5 kW |
| AC-23A, 3-phase, 3-pole, 380 - 440V: | 11 kW |
| Switching programme: | A200 |
| Name: | BA20.A200*A-V751.UE1 |
| Type of contact development: | ON/OFF switch |
| Installation described: | Plaster depth trim; IP40 |
| No. of poles: | 1 |
| Mounting unit: | UE1 |
| Type of installation: | Flush mounting |
| Detailed installation type: | Flush mounting |
| Switch disconnector IEC60947-3: | N |
| Faceplate color: | white |
