Main switch; ON/OFF switch; 2-pole; 0-I; Panel mounting 4-hole; Padlock Device; black
Product information "Main switch; ON/OFF switch; 2-pole; 0-I; Panel mounting 4-hole; Padlock Device; black"

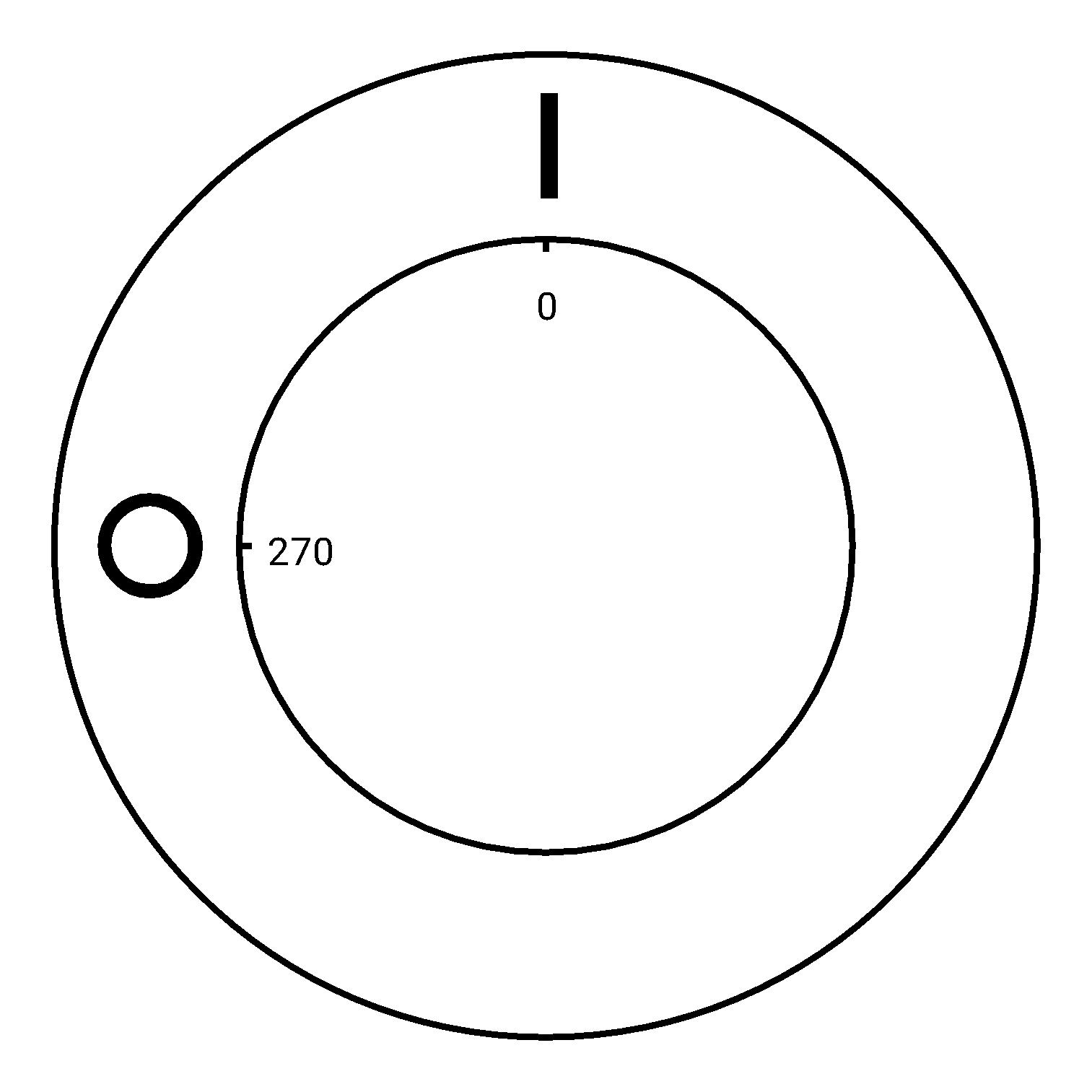

Main switch; ON/OFF switch; 2-pole; 90°; 0-I; four hole panel mounting, IP66/67; 20 A; 3,7 kW (AC-3, 380 - 440 V); 5,5 kW (AC-23A, 380 - 440 V); Padlock Device; black
| Switch type: | KG10B |
|---|---|
| Rated continuous current lu/lth: | 20 A |
| AC-3, 3-phase, 3-pole, 380 - 440V: | 3,7 kW |
| AC-23A, 3-phase, 3-pole, 380 - 440V: | 5,5 kW |
| Switching programme: | T302 |
| Name: | KG10B.T102/01.E |
| Type of contact development: | ON/OFF switch |
| Installation described: | four hole panel mounting, IP66/67 |
| No. of poles: | 2 |
| Mounting unit: | E |
| Type of installation: | Panel mounting |
| Detailed installation type: | Panel mounting 4-hole |
| Switch disconnector IEC60947-3: | Y |
| Faceplate color: | electric gray |
| Handle Color: | black |
