Main switch; ON/OFF switch; 3-pole; 0-I; Base mounting/DIN rail mounting; Padlock Device; Door Clutch; Shaft Extension; Terminal Cover
Product information "Main switch; ON/OFF switch; 3-pole; 0-I; Base mounting/DIN rail mounting; Padlock Device; Door Clutch; Shaft Extension; Terminal Cover"

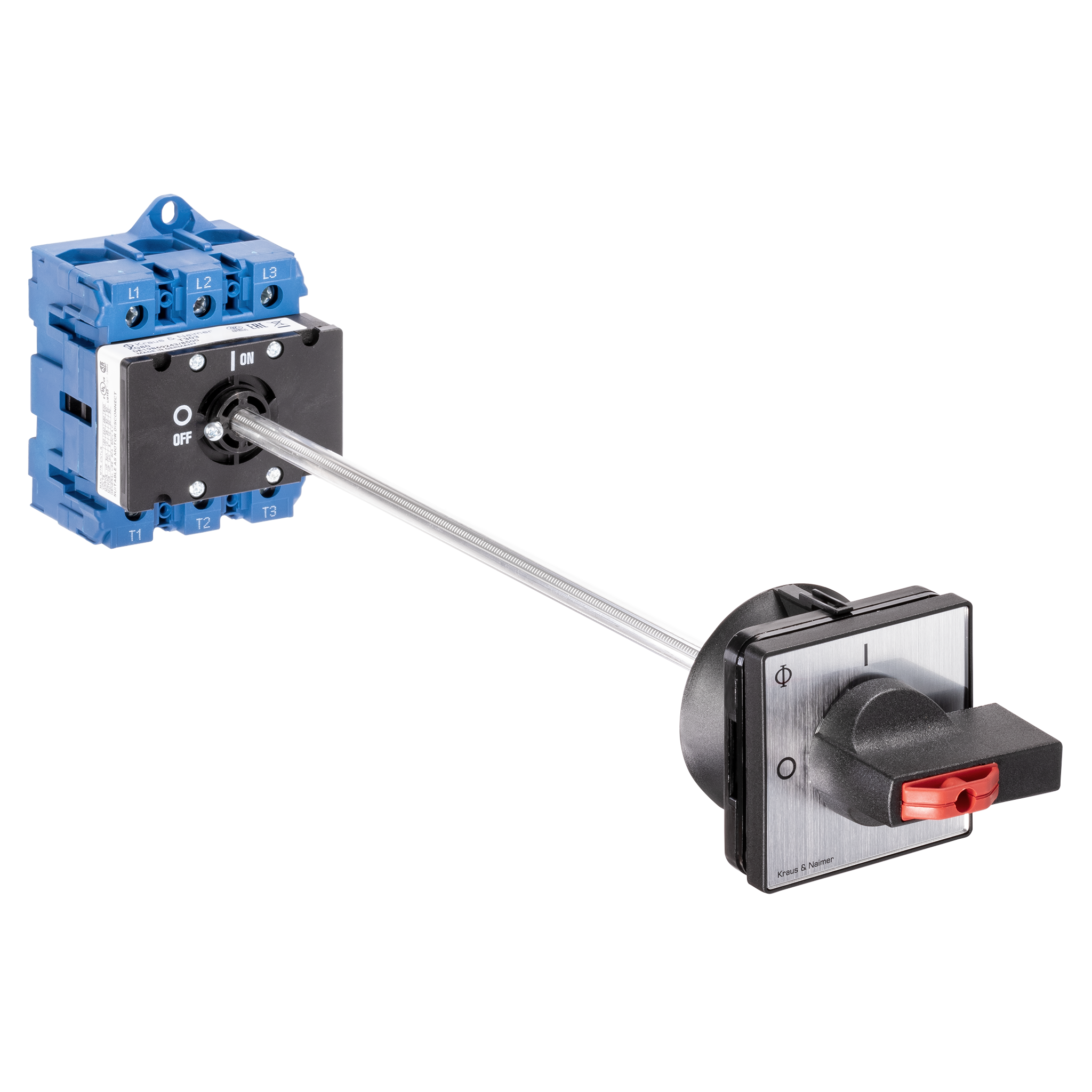

Main switch; ON/OFF switch; 3-pole; 90°; 0-I; two hole base mounting, IP40; 80 A; 22 kW (AC-3, 380 - 440 V); 30 kW (AC-23A, 380 - 440 V); Padlock Device; Door Clutch; Shaft Extension; Terminal Cover
| Switch type: | KG80 |
|---|---|
| Rated continuous current lu/lth: | 80 A |
| AC-3, 3-phase, 3-pole, 380 - 440V: | 22 kW |
| AC-23A, 3-phase, 3-pole, 380 - 440V: | 30 kW |
| Switching programme: | T303 |
| Name: | KG80.T103/65.VE |
| Type of contact development: | ON/OFF switch |
| Installation described: | two hole base mounting, IP40 |
| No. of poles: | 3 |
| Mounting unit: | VE |
| Type of installation: | Base mounting |
| Detailed installation type: | Base mounting/DIN rail mounting |
| Switch disconnector IEC60947-3: | Y |

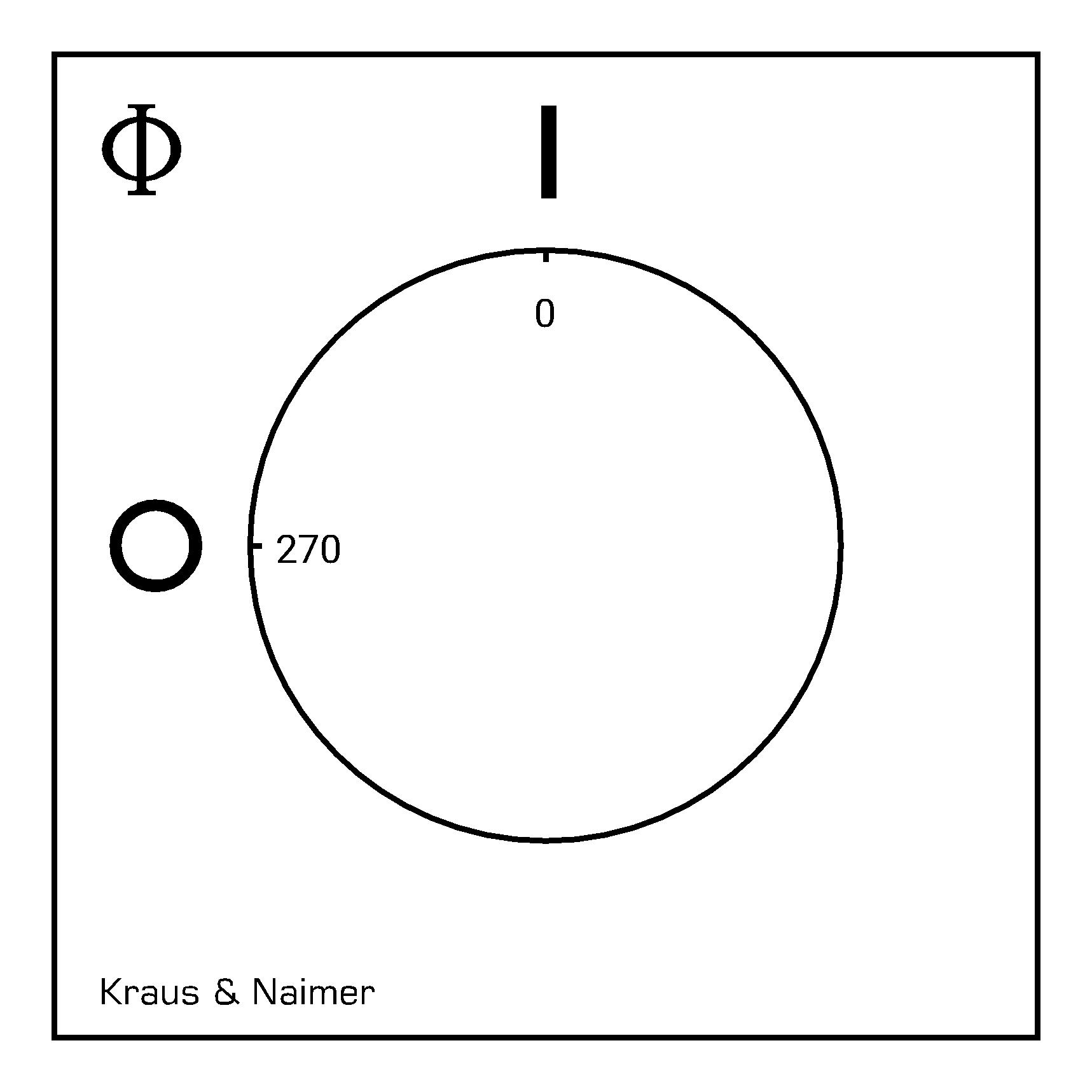

| Faceplate color: | brushed aluminum |
