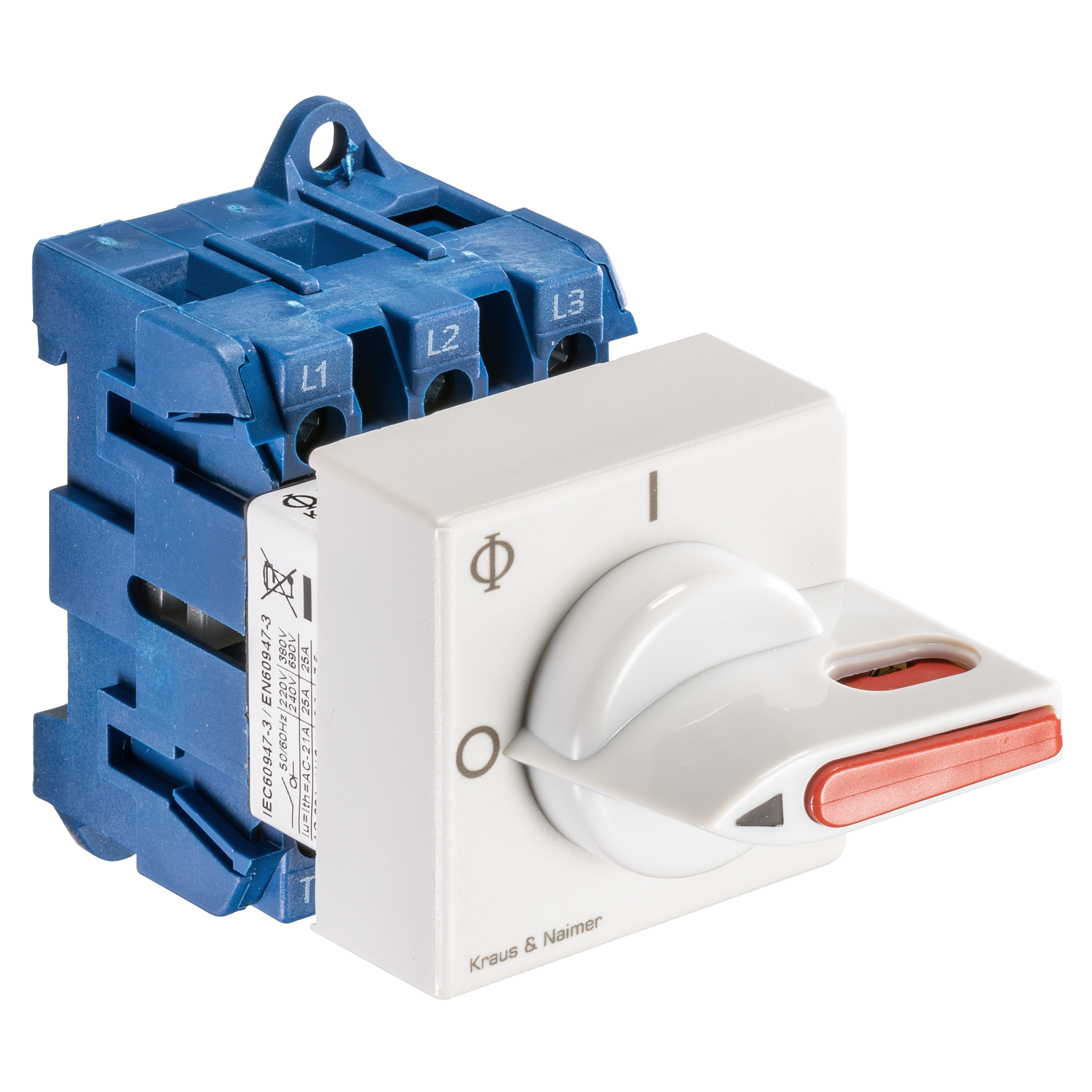

Main switch; ON/OFF switch; 3-pole; 0-I; Base mounting/DIN rail mounting; Padlock Device; electric gray, locking bar flag red
Product information "Main switch; ON/OFF switch; 3-pole; 0-I; Base mounting/DIN rail mounting; Padlock Device; electric gray, locking bar flag red"
Main switch; ON/OFF switch; 3-pole; 90°; 0-I; Snap-on base mounting for track EN60715 and face plate for 45mm knock-out, IP40; 25 A; 5,5 kW (AC-3, 380 - 440 V); 7,5 kW (AC-23A, 380 - 440 V); Padlock Device; electric gray, locking bar flag red
| Switch type: | KG20A |
|---|---|
| Rated continuous current lu/lth: | 25 A |
| AC-3, 3-phase, 3-pole, 380 - 440V: | 5,5 kW |
| AC-23A, 3-phase, 3-pole, 380 - 440V: | 7,5 kW |
| Switching programme: | T303 |
| Name: | KG20A.T303/58.VE2 |
| Type of contact development: | ON/OFF switch |
| Installation described: | Snap-on base mounting for track EN60715 and face plate for 45mm knock-out, IP40 |
| No. of poles: | 3 |
| Mounting unit: | VE2 |
| Type of installation: | Base mounting |
| Detailed installation type: | Base mounting/DIN rail mounting |
| Switch disconnector IEC60947-3: | Y |

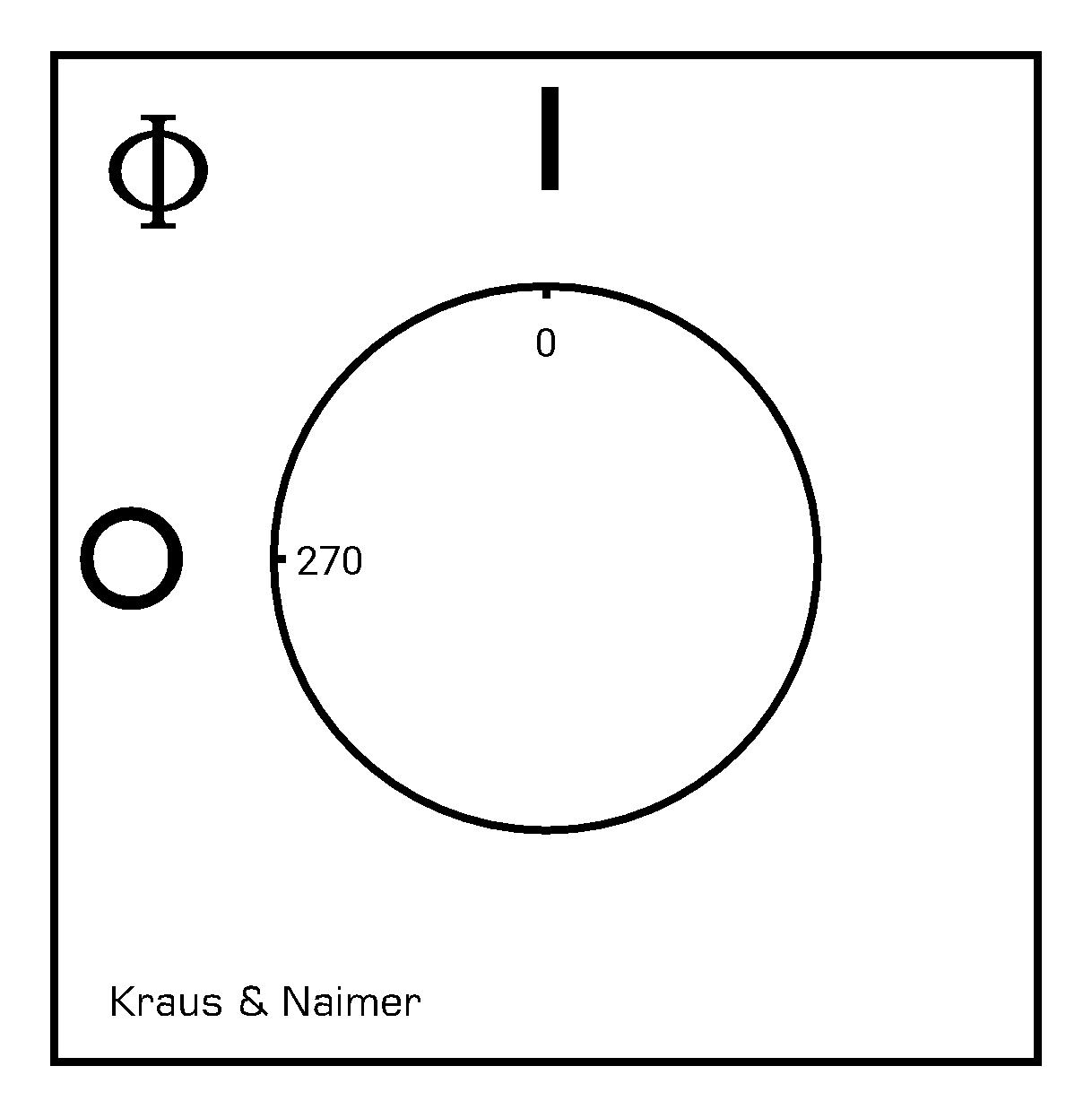

| Faceplate color: | electric gray |
| Handle Color: | electric gray, locking bar flag red |
