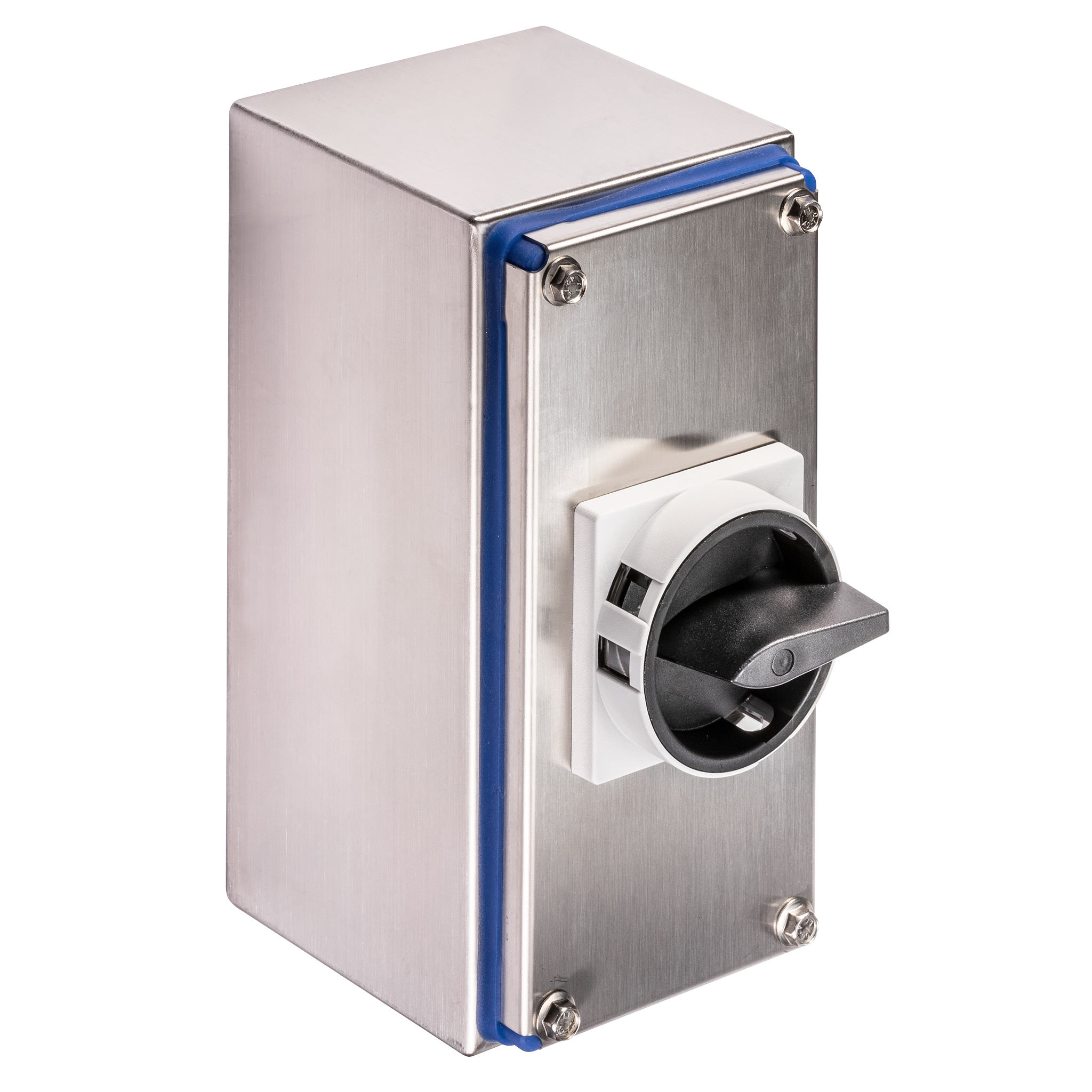

Main switch; ON/OFF switch; 3-pole; 0-I; Base mounting/DIN rail mounting; Shaft Extension; Padlock Device; black; Auxiliary Contact
Product information "Main switch; ON/OFF switch; 3-pole; 0-I; Base mounting/DIN rail mounting; Shaft Extension; Padlock Device; black; Auxiliary Contact"
Main switch; ON/OFF switch; 3-pole; 90°; 0-I; two hole base mounting, IP40; 40 A; 11 kW (AC-3, 380 - 440 V); 15 kW (AC-23A, 380 - 440 V); Shaft Extension; Padlock Device; black; Auxiliary Contact
| Switch type: | KG41B |
|---|---|
| Rated continuous current lu/lth: | 40 A |
| AC-3, 3-phase, 3-pole, 380 - 440V: | 11 kW |
| AC-23A, 3-phase, 3-pole, 380 - 440V: | 15 kW |

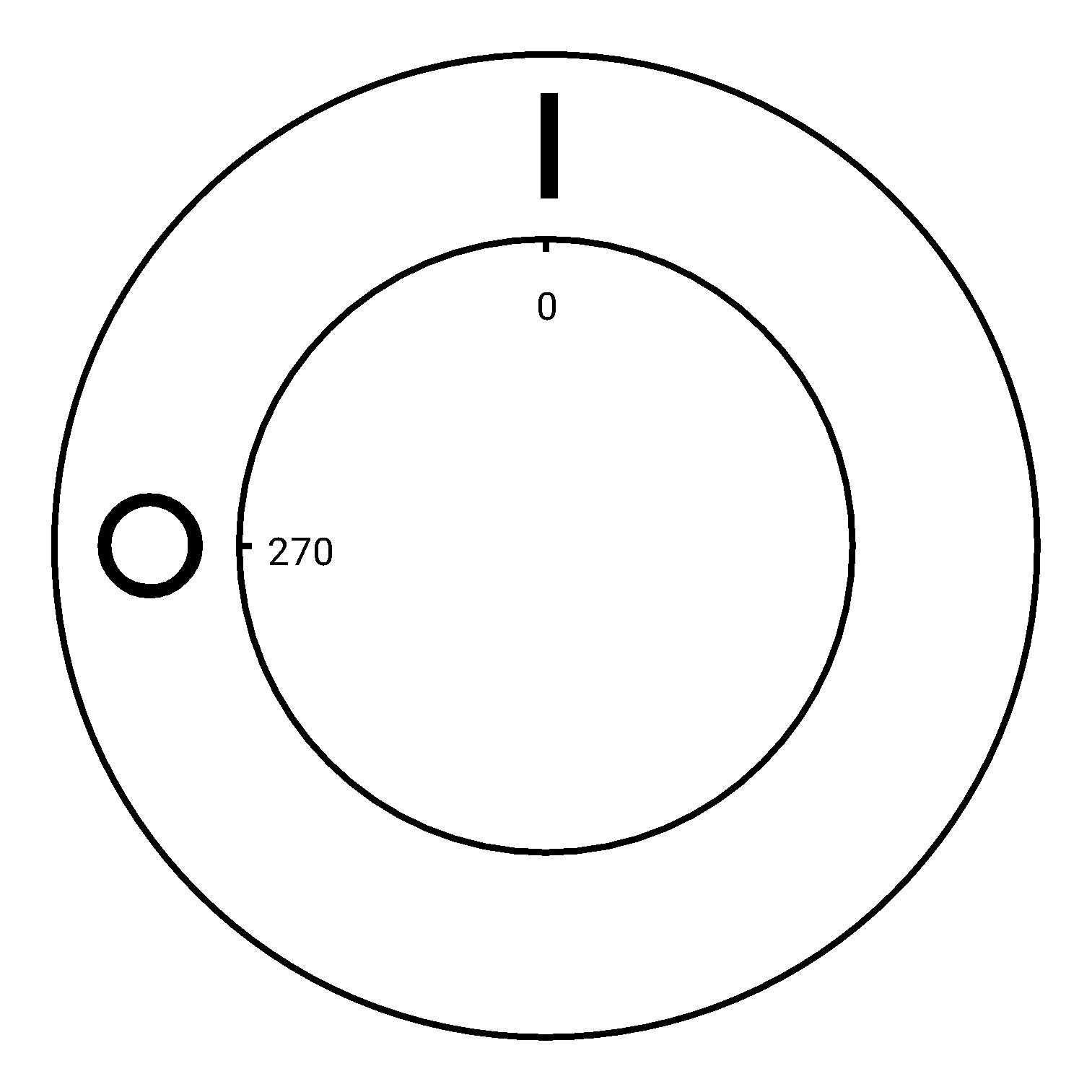

| Switching programme: | T303 |
| Name: | KG41.T103/NLB522.IKN |
| Type of contact development: | ON/OFF switch |
| Installation described: | two hole base mounting, IP40 |
| No. of poles: | 3 |
| Mounting unit: | VE |
| Type of installation: | Metal housing (stainless steel) |
| Detailed installation type: | stainless steel enclosure |
| Switch disconnector IEC60947-3: | Y |
| Faceplate color: | electric gray |
| Handle Color: | black |
