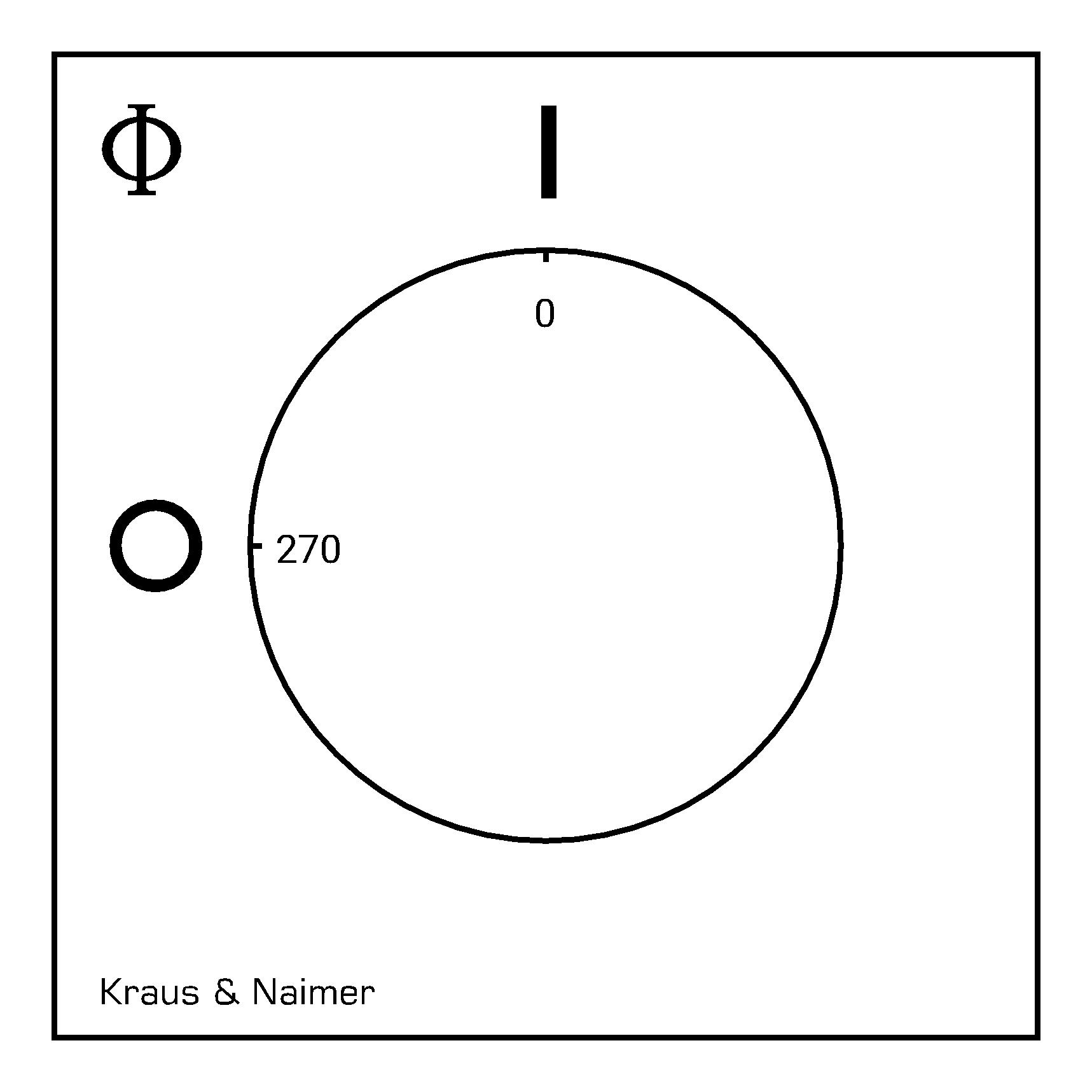

Main switch; ON/OFF switch; 3-pole; 0-I; Base mounting; Padlock Device; Door Clutch; Auxiliary Contact
Product information "Main switch; ON/OFF switch; 3-pole; 0-I; Base mounting; Padlock Device; Door Clutch; Auxiliary Contact"
Main switch; ON/OFF switch; 3-pole; 90°; 0-I; four hole base mounting, IP40; 315 A; 75 kW (AC-3, 380 - 440 V); 110 kW (AC-23A, 380 - 440 V); Padlock Device; Door Clutch; Auxiliary Contact
| Switch type: | KG315 |
|---|---|
| Rated continuous current lu/lth: | 315 A |
| AC-3, 3-phase, 3-pole, 380 - 440V: | 75 kW |
| AC-23A, 3-phase, 3-pole, 380 - 440V: | 110 kW |
| Switching programme: | T303 |
| Name: | KG315.T203/D-A034.STM |
| Type of contact development: | ON/OFF switch |
| Installation described: | four hole base mounting, IP40 |
| No. of poles: | 3 |
| Mounting unit: | VE |
| Type of installation: | Plastic housing |
| Detailed installation type: | Plastic housing |
| Switch disconnector IEC60947-3: | Y |
| Faceplate color: | yellow |
