Main switch; ON/OFF switch; 3-pole; 0-I; Panel mounting 4-hole; Padlock Device; Terminal Cover
Product information "Main switch; ON/OFF switch; 3-pole; 0-I; Panel mounting 4-hole; Padlock Device; Terminal Cover"

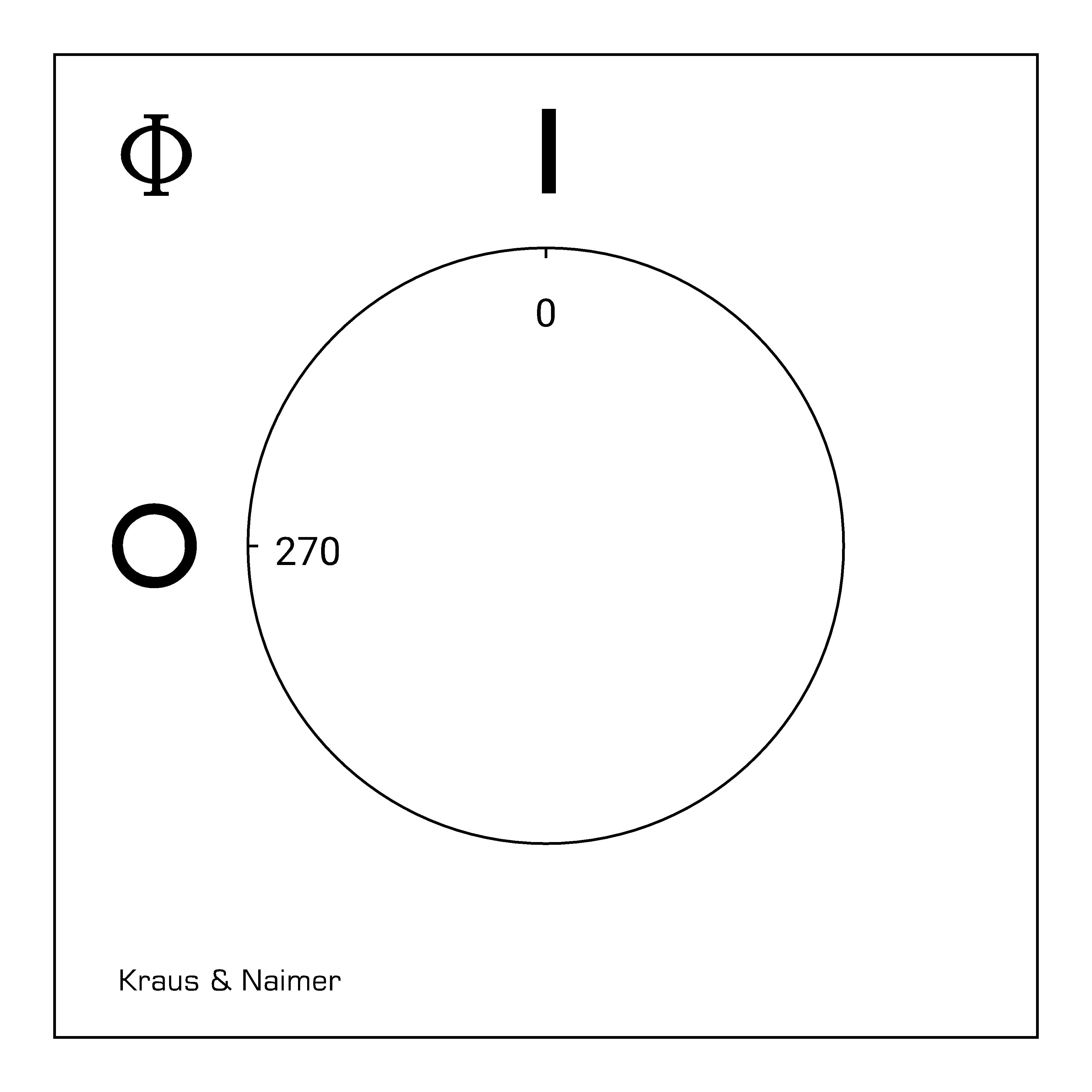

Main switch; ON/OFF switch; 3-pole; 90°; 0-I; four hole panel mounting, IP40; 315 A; 55 kW (AC-3, 380 - 440 V); 132 kW (AC-23A, 380 - 440 V); Padlock Device; Terminal Cover
| Switch type: | C316 |
|---|---|
| Rated continuous current lu/lth: | 315 A |
| AC-3, 3-phase, 3-pole, 380 - 440V: | 55 kW |
| AC-23A, 3-phase, 3-pole, 380 - 440V: | 132 kW |
| Switching programme: | T303 |
| Name: | C316.T203/05.E |
| Type of contact development: | ON/OFF switch |
| Installation described: | four hole panel mounting, IP40 |
| No. of poles: | 3 |
| Mounting unit: | E |
| Type of installation: | Panel mounting |
| Detailed installation type: | Panel mounting 4-hole |
| Switch disconnector IEC60947-3: | Y |
| Faceplate color: | yellow |
