Main switch; ON/OFF switch; 4-pole; 0-I; Base mounting/DIN rail mounting; Shaft Extension; Padlock Device; red, yellow; Auxiliary Contact; NO 1; NC 1
Product information "Main switch; ON/OFF switch; 4-pole; 0-I; Base mounting/DIN rail mounting; Shaft Extension; Padlock Device; red, yellow; Auxiliary Contact; NO 1; NC 1"
Main switch; ON/OFF switch; 4-pole; 90°; 0-I; two hole base mounting; Front side IP40; 100 A; 30 kW (AC-3, 380 - 440 V); 37 kW (AC-23A, 380 - 440 V); Shaft Extension; Padlock Device; red, yellow; Auxiliary Contact; NO 1; NC 1
| Switch type: | KG100 |
|---|---|
| Rated continuous current lu/lth: | 100 A |
| AC-3, 3-phase, 3-pole, 380 - 440V: | 30 kW |
| AC-23A, 3-phase, 3-pole, 380 - 440V: | 37 kW |
| Switching programme: | T304 |
| Name: | KG100.T204/NLB512.IKN |
| Type of contact development: | ON/OFF switch |
| Installation described: | two hole base mounting |
| No. of poles: | 4 |
| Mounting unit: | VE |
| Type of installation: | Base mounting |
| Detailed installation type: | Base mounting/DIN rail mounting |
| Switch disconnector IEC60947-3: | Y |

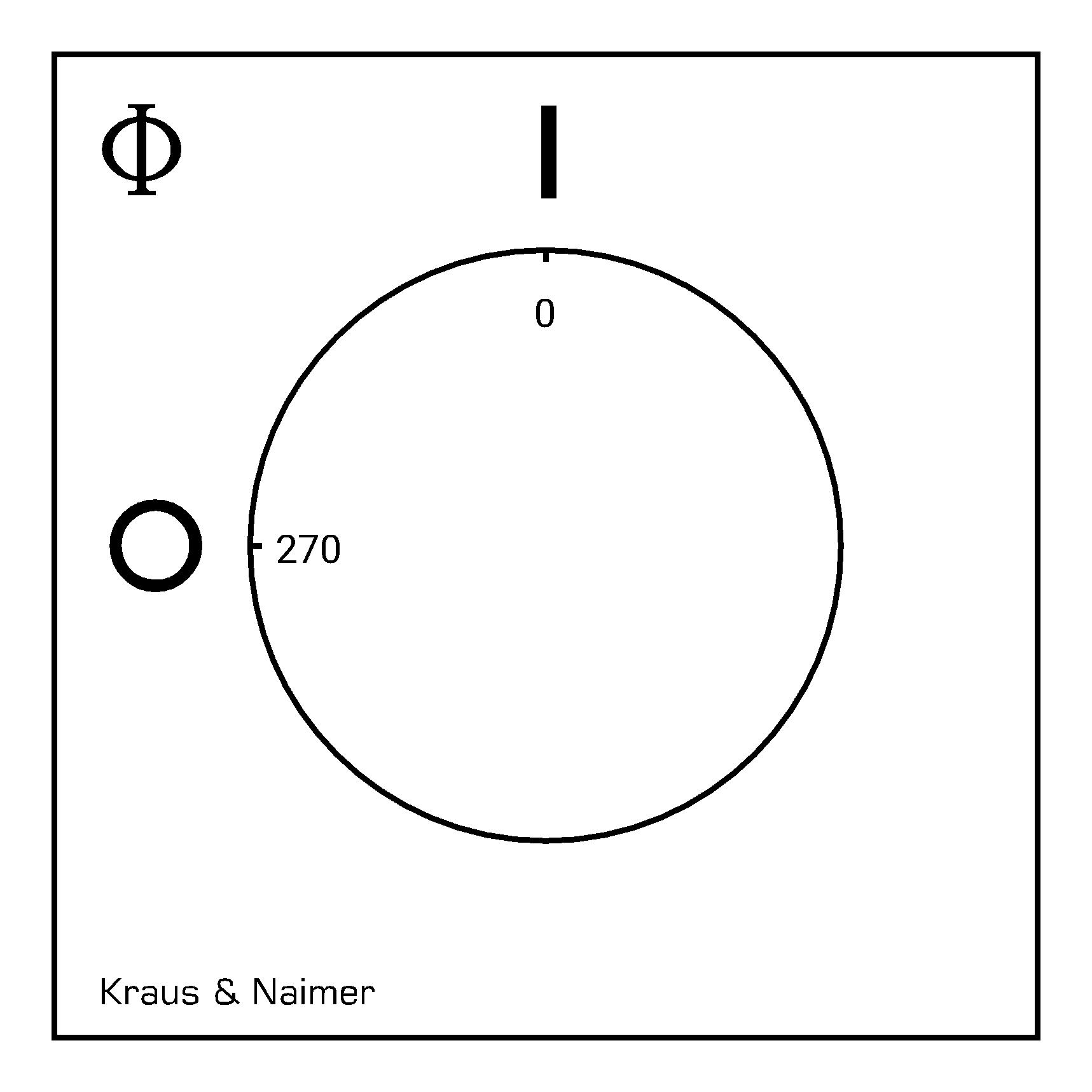

| Faceplate color: | brushed aluminum |
| Handle Color: | red |
