Main switch; ON/OFF switch; 6-pole; 0-I; Base mounting/DIN rail mounting; Padlock Device; black, electric gray; Door Clutch; PE-Terminal; Auxiliary Contact; NO 1; NC 1
Product information "Main switch; ON/OFF switch; 6-pole; 0-I; Base mounting/DIN rail mounting; Padlock Device; black, electric gray; Door Clutch; PE-Terminal; Auxiliary Contact; NO 1; NC 1"

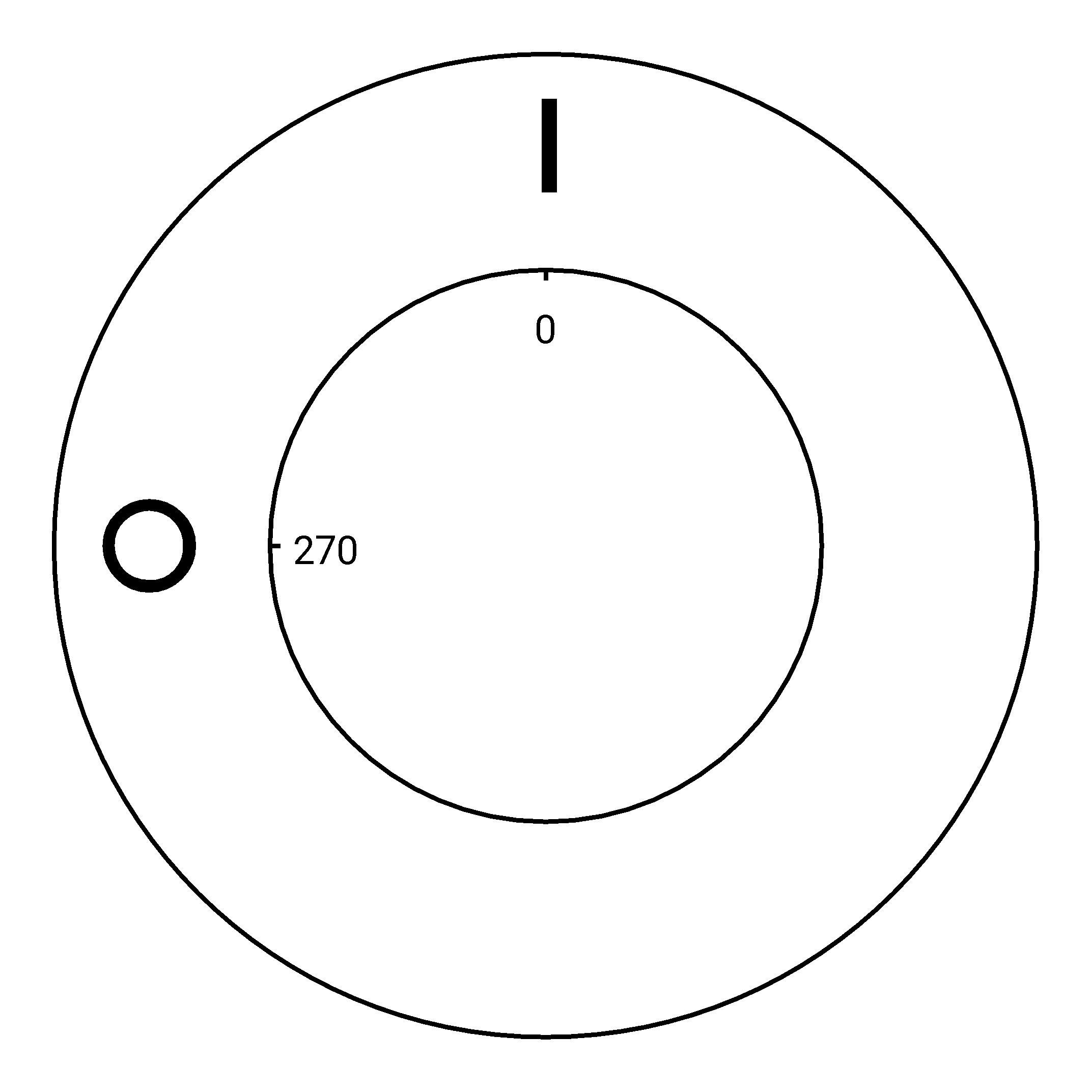

Main switch; ON/OFF switch; 6-pole; 90°; 0-I; four hole base mounting; Front side IP40; 100 A; 30 kW (AC-3, 380 - 440 V); 37 kW (AC-23A, 380 - 440 V); Padlock Device; black, electric gray; Door Clutch; PE-Terminal; Auxiliary Contact; NO 1; NC 1
| Switch type: | KG100C |
|---|---|
| Rated continuous current lu/lth: | 100 A |
| AC-3, 3-phase, 3-pole, 380 - 440V: | 30 kW |
| AC-23A, 3-phase, 3-pole, 380 - 440V: | 37 kW |
| Switching programme: | T306 |
| Name: | KG100C.T106/D-A049.STM |
| Type of contact development: | ON/OFF switch |
| Installation described: | four hole base mounting |
| No. of poles: | 6 |
| Mounting unit: | VE |
| Type of installation: | Base mounting |
| Detailed installation type: | Base mounting/DIN rail mounting |
| Switch disconnector IEC60947-3: | Y |
| Faceplate color: | electric gray |
| Handle Color: | black |
