Main switch; ON/OFF switch; 6-pole; 0-I; Base mounting; Padlock Device; Door Clutch; Auxiliary Contact; NO 1; NC 1
Product information "Main switch; ON/OFF switch; 6-pole; 0-I; Base mounting; Padlock Device; Door Clutch; Auxiliary Contact; NO 1; NC 1"

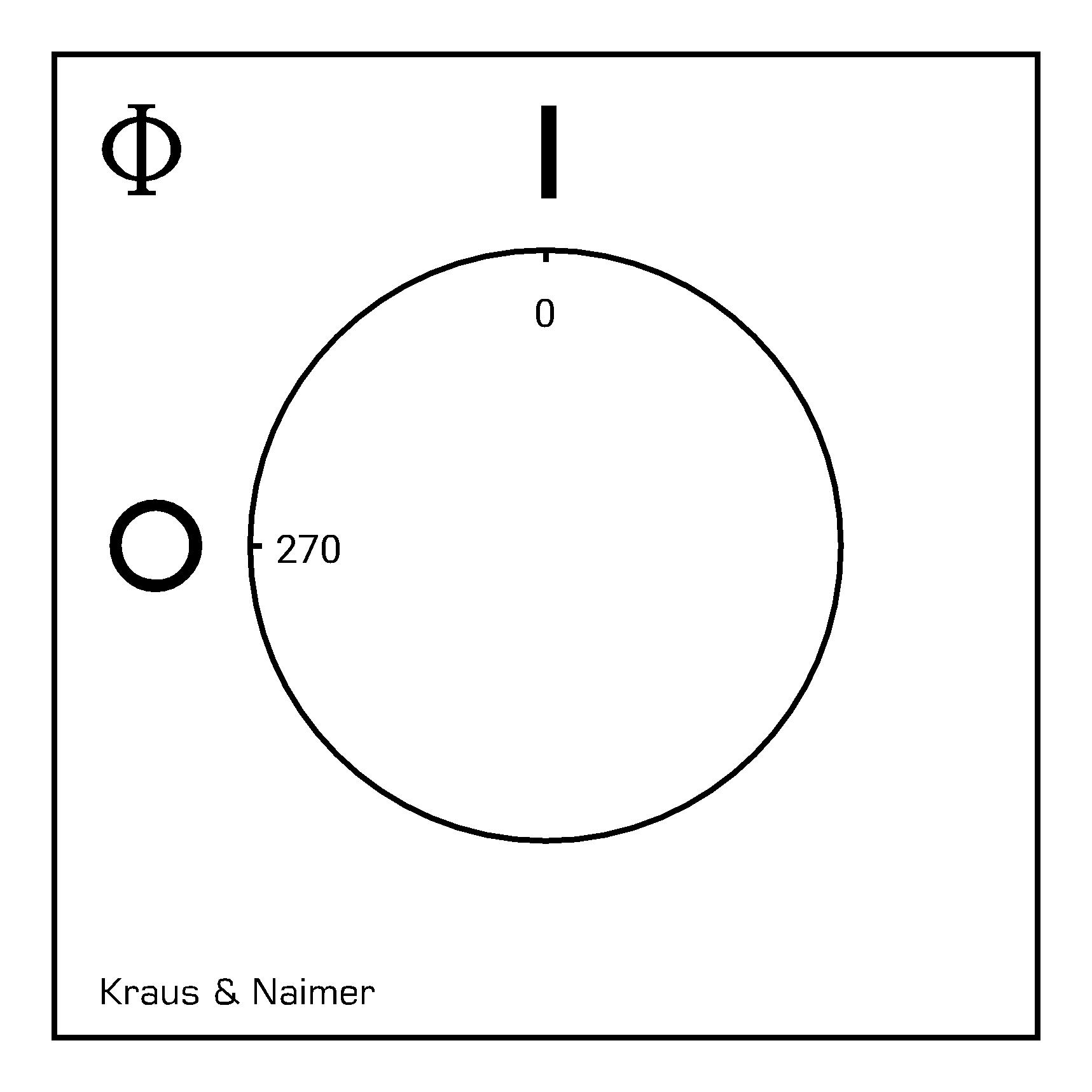

Main switch; ON/OFF switch; 6-pole; 90°; 0-I; four hole base mounting; Front side IP40; 125 A; 37 kW (AC-3, 380 - 440 V); 45 kW (AC-23A, 380 - 440 V); Padlock Device; Door Clutch; Auxiliary Contact; NO 1; NC 1
| Switch type: | KG125 |
|---|---|
| Rated continuous current lu/lth: | 125 A |
| AC-3, 3-phase, 3-pole, 380 - 440V: | 37 kW |
| AC-23A, 3-phase, 3-pole, 380 - 440V: | 45 kW |
| Switching programme: | T306 |
| Name: | KG125.T206/D-A020.STM |
| Type of contact development: | ON/OFF switch |
| Installation described: | four hole base mounting |
| No. of poles: | 6 |
| Mounting unit: | VE |
| Type of installation: | Base mounting |
| Detailed installation type: | Base mounting |
| Switch disconnector IEC60947-3: | Y |
| Faceplate color: | yellow |
