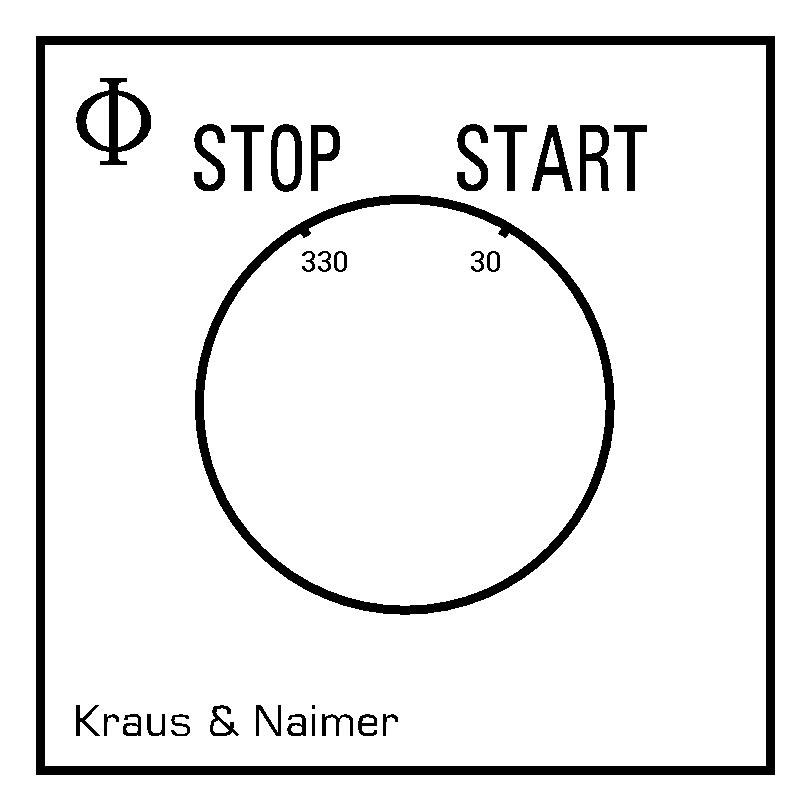

Momentary start stop switch, isol. cont.; STOP-START; Panel mounting 2-hole
Product information "Momentary start stop switch, isol. cont.; STOP-START; Panel mounting 2-hole"
Momentary start stop switch with electrically isolated contacts; 90°; STOP-START; two hole panel mounting, IP40; 10 A; 2,2 kW (AC-3, 380 - 440 V); 3 kW (AC-23A, 380 - 440 V)
| Switch type: | CG4 |
|---|---|
| Rated continuous current lu/lth: | 10 A |
| AC-3, 3-phase, 3-pole, 380 - 440V: | 2,2 kW |
| AC-23A, 3-phase, 3-pole, 380 - 440V: | 3 kW |
| Switching programme: | A789 |
| Name: | CG4.A789.E |
| Type of contact development: | Momentary start stop switch with electrically isolated contacts |
| Installation described: | two hole panel mounting, IP40 |
| Mounting unit: | E |
| Type of installation: | Panel mounting |
| Detailed installation type: | Panel mounting 2-hole |
| Switch disconnector IEC60947-3: | N |
| Faceplate color: | brushed aluminum |
| Handle Color: | black |
