Multi-step switch 1-3; 2-pole; 1-2-3; Plastic housing
Product information "Multi-step switch 1-3; 2-pole; 1-2-3; Plastic housing"
Step switch without OFF position, 3 steps; 2-pole; 60°; 1-2-3; UV-resistance enclosure, IP66/67; 20 A; 5,5 kW (AC-3, 380 - 440 V); 7,5 kW (AC-23A, 380 - 440 V)
| Switch type: | CH10 |
|---|---|
| Rated continuous current lu/lth: | 20 A |
| AC-3, 3-phase, 3-pole, 380 - 440V: | 5,5 kW |
| AC-23A, 3-phase, 3-pole, 380 - 440V: | 7,5 kW |
| Switching programme: | A250 |
| Name: | CH10.A250.KS10 |
| Type of contact development: | Step switch without OFF position, 3 steps |
| Installation described: | UV-resistance enclosure, IP66/67 |
| No. of poles: | 2 |
| Mounting unit: | KS10 |
| Type of installation: | Plastic housing |
| Detailed installation type: | Plastic housing |
| Switch disconnector IEC60947-3: | N |

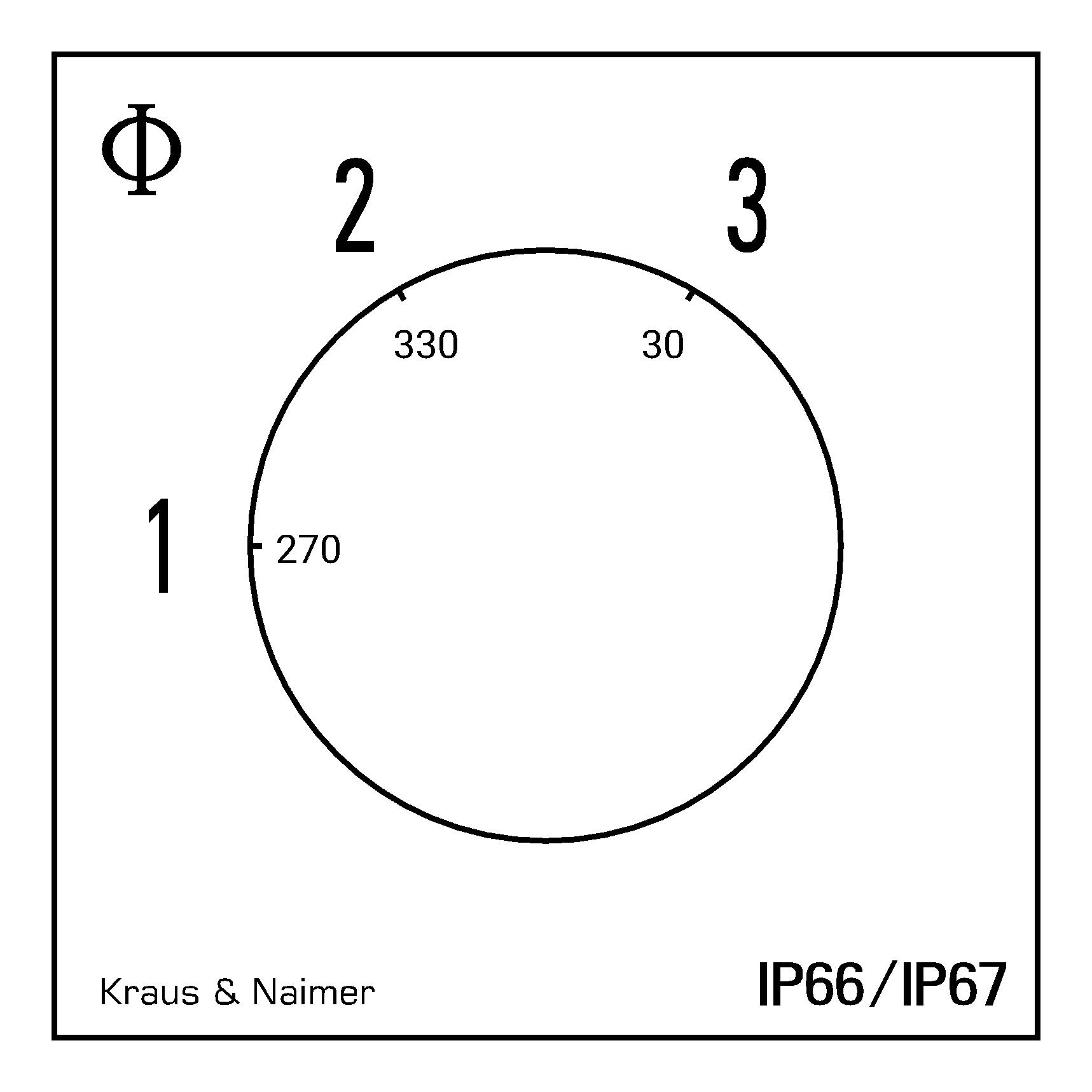

| Faceplate color: | brushed aluminum |
| Handle Color: | electric gray |
