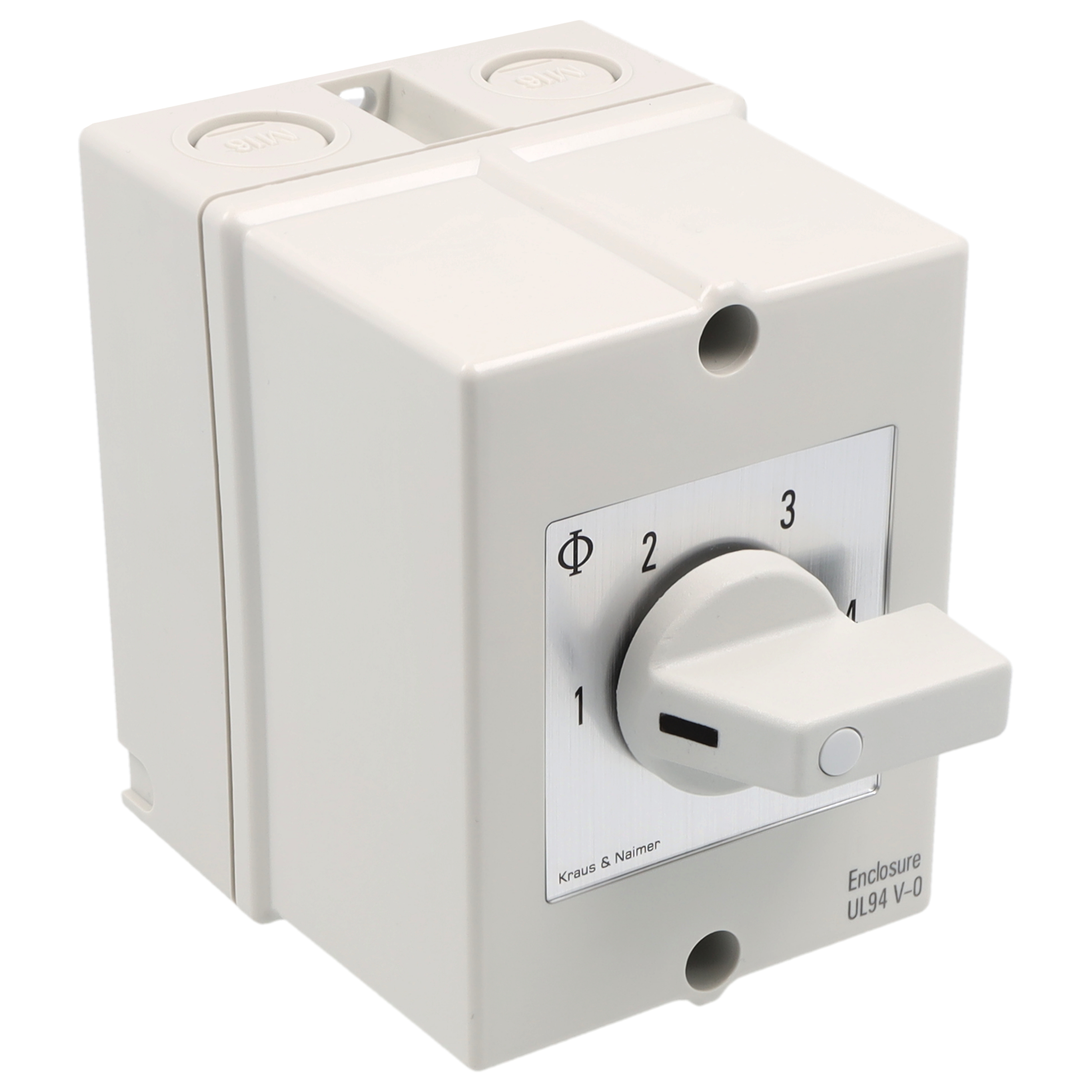

Multi-step switch 1-5; 1-pole; 1->5; Plastic housing
Product information "Multi-step switch 1-5; 1-pole; 1->5; Plastic housing"
Step switch without OFF position, 5 steps; 1-pole; 60°; 1->5; UV-resistance enclosure, IP66/67; 10 A; 2,2 kW (AC-3, 380 - 440 V); 3 kW (AC-23A, 380 - 440 V)
| Switch type: | CA4 |
|---|---|
| Rated continuous current lu/lth: | 10 A |
| AC-3, 3-phase, 3-pole, 380 - 440V: | 2,2 kW |
| AC-23A, 3-phase, 3-pole, 380 - 440V: | 3 kW |
| Switching programme: | A232 |
| Name: | CA4.A232.KS3 |
| Type of contact development: | Step switch without OFF position, 5 steps |
| Installation described: | UV-resistance enclosure, IP66/67 |
| No. of poles: | 1 |
| Mounting unit: | KS3 |
| Type of installation: | Plastic housing |
| Detailed installation type: | Plastic housing |
| Switch disconnector IEC60947-3: | N |
| Faceplate color: | brushed aluminum |
| Handle Color: | electric gray |
