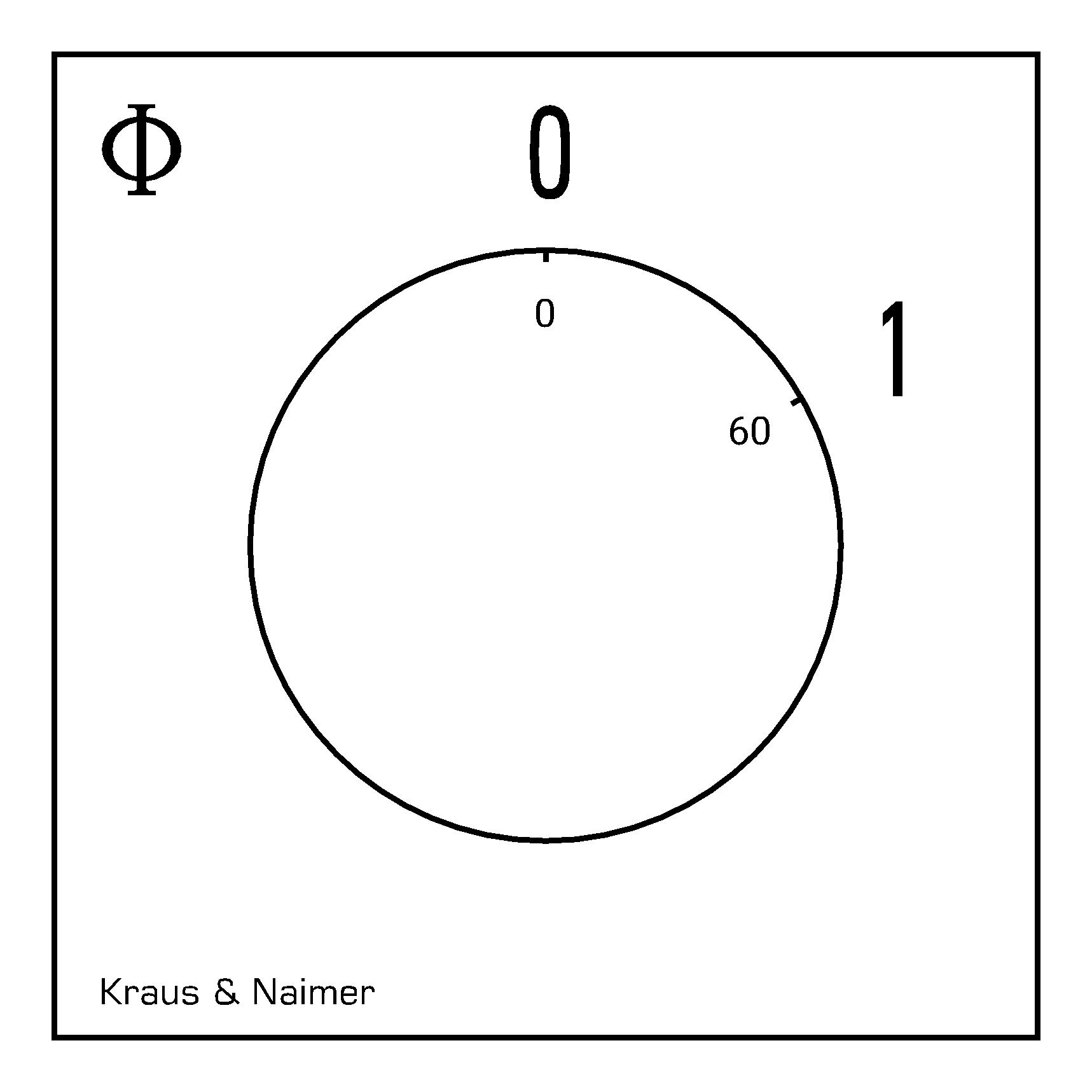

ON/OFF switch; 1-pole; 0-1; Panel mounting 4-hole
Product information "ON/OFF switch; 1-pole; 0-1; Panel mounting 4-hole"
ON/OFF switch; 1-pole; 60°; 0-1; four hole panel mounting, IP40; 32 A; 11 kW (AC-3, 380 - 440 V); 15 kW (AC-23A, 380 - 440 V)
| Switch type: | C26 |
|---|---|
| Rated continuous current lu/lth: | 32 A |
| AC-3, 3-phase, 3-pole, 380 - 440V: | 11 kW |
| AC-23A, 3-phase, 3-pole, 380 - 440V: | 15 kW |
| Switching programme: | A200 |
| Name: | C26.A200.E |
| Type of contact development: | ON/OFF switch |
| Installation described: | four hole panel mounting, IP40 |
| No. of poles: | 1 |
| Mounting unit: | E |
| Type of installation: | Panel mounting |
| Detailed installation type: | Panel mounting 4-hole |
| Switch disconnector IEC60947-3: | N |
| Faceplate color: | brushed aluminum |
| Handle Color: | black |
