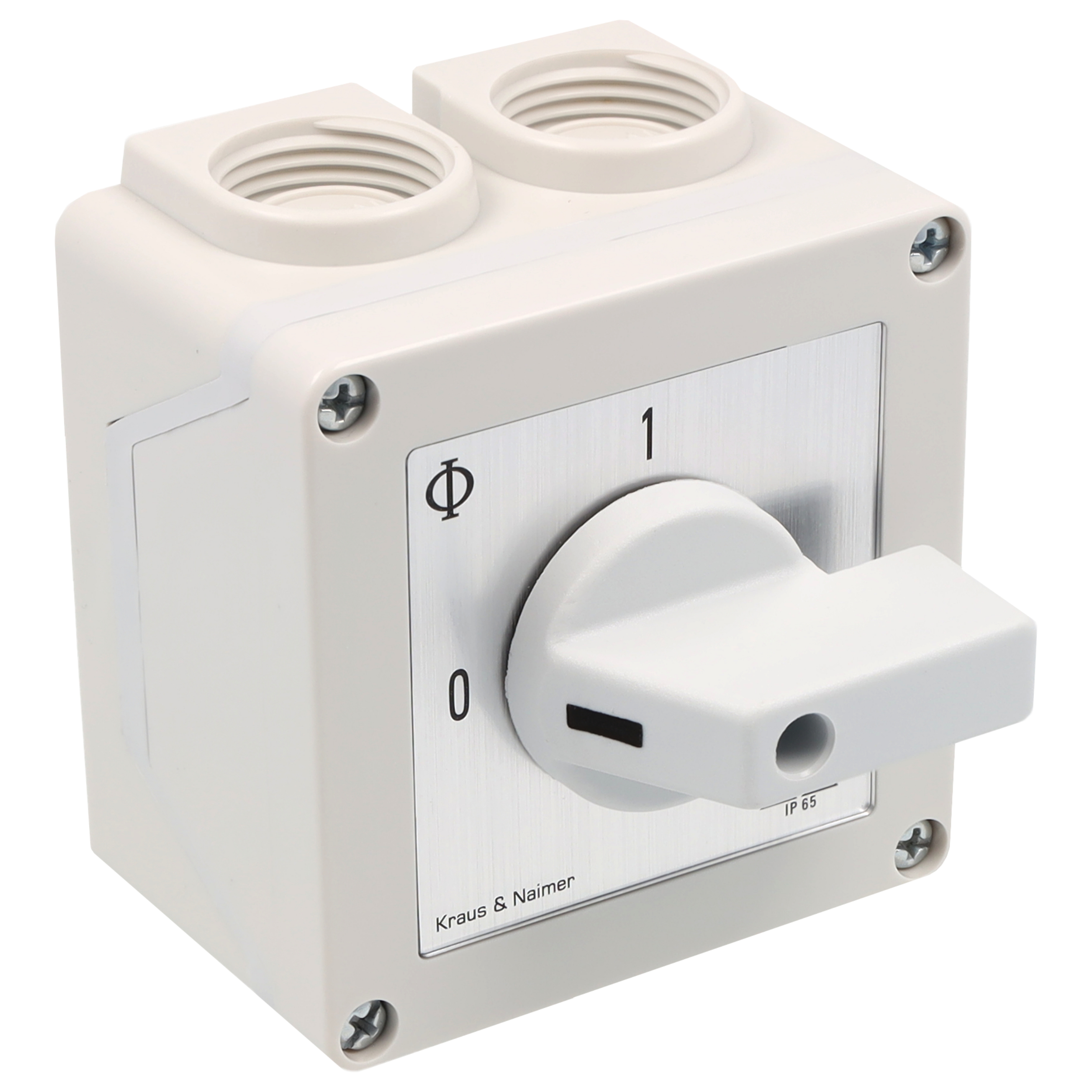

ON/OFF switch; 2-pole; 0-1; Plastic housing
Product information "ON/OFF switch; 2-pole; 0-1; Plastic housing"
ON/OFF switch; 2-pole; 90°; 0-1; Plastic enclosure with M20 entries, IP42; 20 A; 5,5 kW (AC-3, 380 - 440 V); 7,5 kW (AC-23A, 380 - 440 V)
| Switch type: | CA10 |
|---|---|
| Rated continuous current lu/lth: | 20 A |
| AC-3, 3-phase, 3-pole, 380 - 440V: | 5,5 kW |
| AC-23A, 3-phase, 3-pole, 380 - 440V: | 7,5 kW |
| Switching programme: | A291 |
| Name: | CA10.A291.PFL1 |
| Type of contact development: | ON/OFF switch |
| Installation described: | Plastic enclosure with M20 entries, IP42 |
| No. of poles: | 2 |
| Mounting unit: | PFL1 |
| Type of installation: | Plastic housing |
| Detailed installation type: | Plastic housing |
| Switch disconnector IEC60947-3: | N |

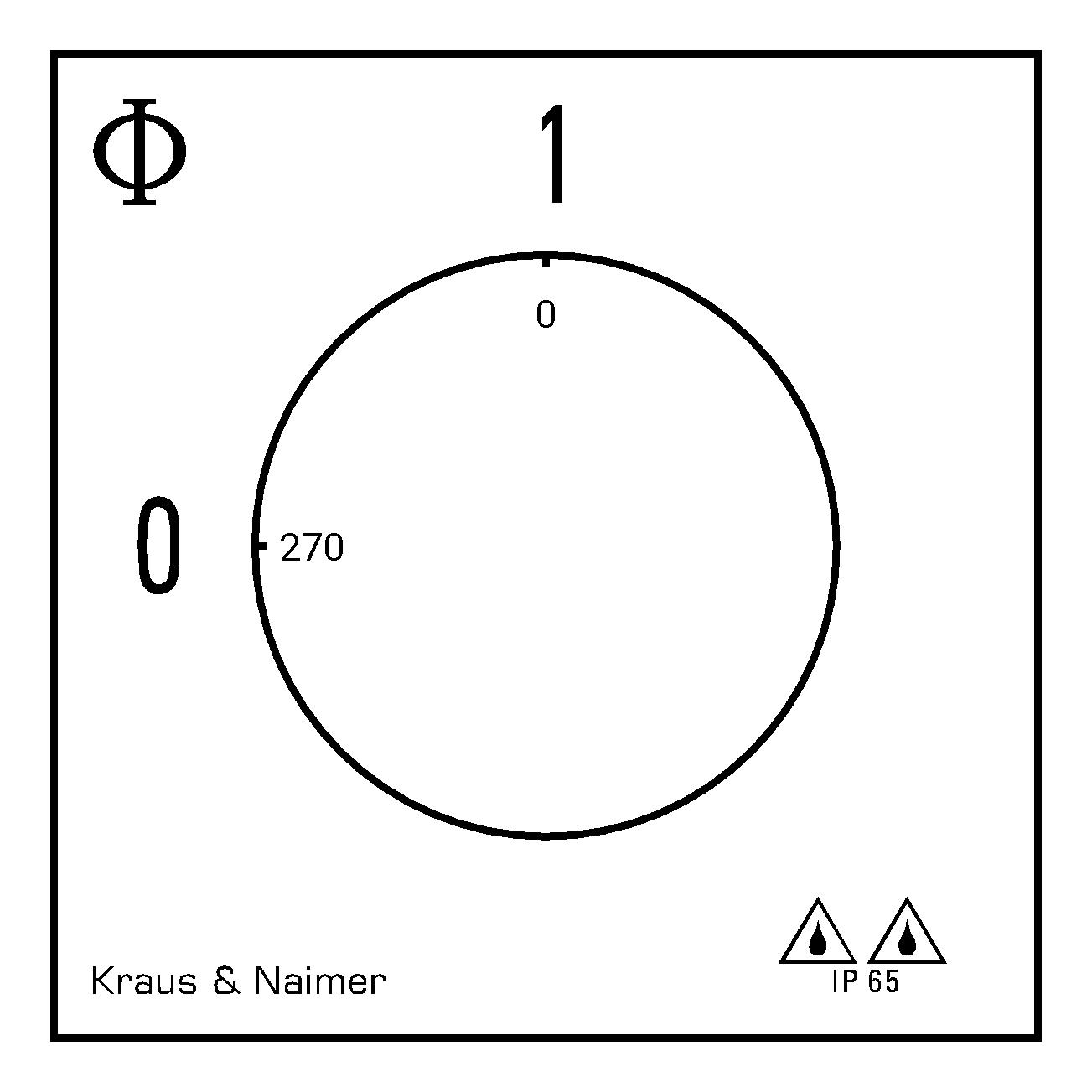

| Faceplate color: | brushed aluminum |
| Handle Color: | electric gray |
