ON/OFF switch; 3-pole; 0OFF-ION; Plastic housing; Auxiliary Contact
Product information "ON/OFF switch; 3-pole; 0OFF-ION; Plastic housing; Auxiliary Contact"

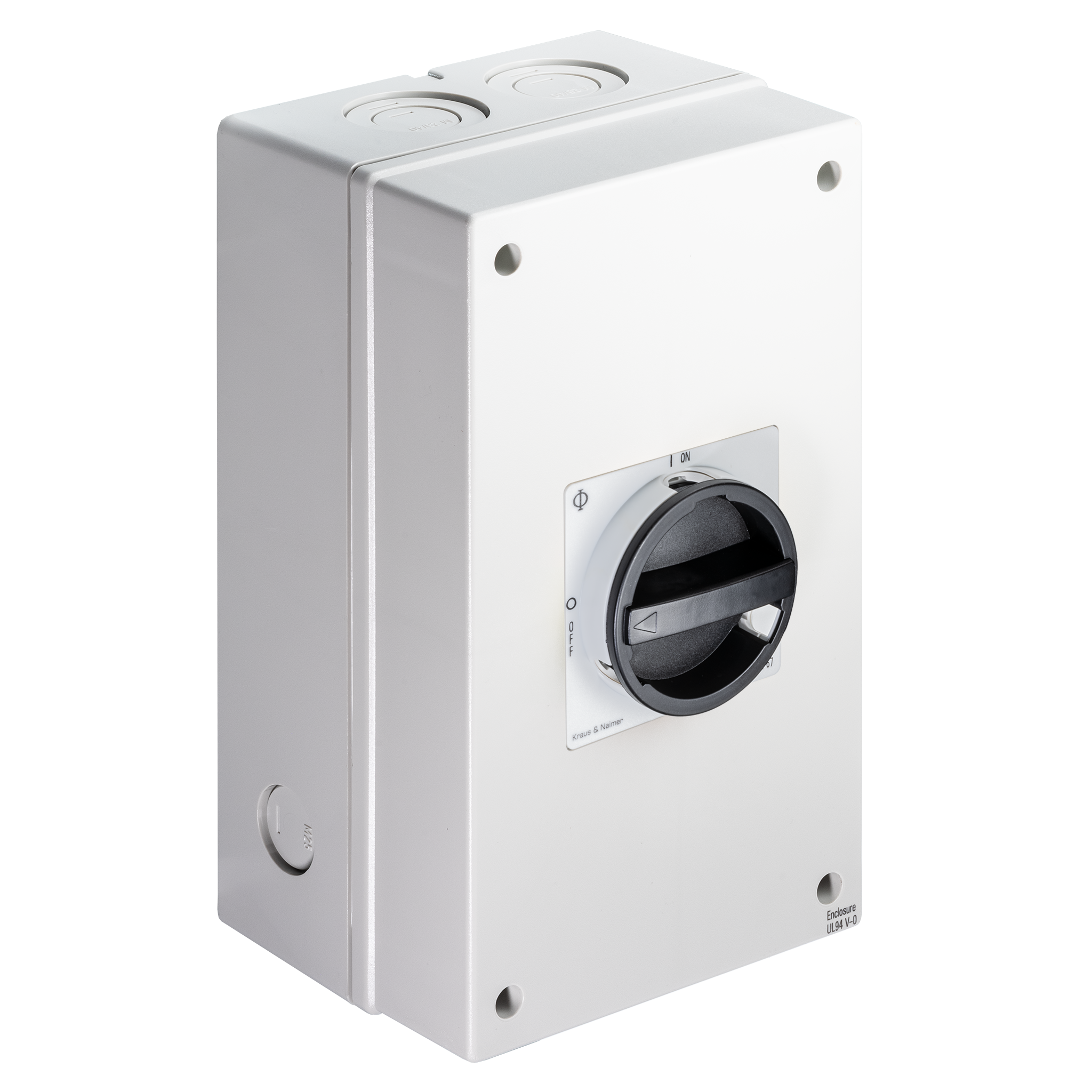

ON/OFF switch; 3-pole; 90°; 0OFF-ION; UV-resistance enclosure with integrated padlock device and cover interlock, IP66/67; 63 A; 18,5 kW (AC-3, 380 - 440 V); 22 kW (AC-23A, 380 - 440 V); Auxiliary Contact
| Switch type: | KA63 |
|---|---|
| Rated continuous current lu/lth: | 63 A |
| AC-3, 3-phase, 3-pole, 380 - 440V: | 18,5 kW |
| AC-23A, 3-phase, 3-pole, 380 - 440V: | 22 kW |
| Switching programme: | T303 |
| Name: | KA63.T103/E1.KL71V |
| Type of contact development: | ON/OFF switch |
| Installation described: | UV-resistance enclosure with integrated padlock device and cover interlock, IP66/67 |
| No. of poles: | 3 |
| Mounting unit: | KL71V |
| Type of installation: | Plastic housing |
| Detailed installation type: | Plastic housing |
| Switch disconnector IEC60947-3: | Y |
| Faceplate color: | electric gray |
| Handle Color: | black |
